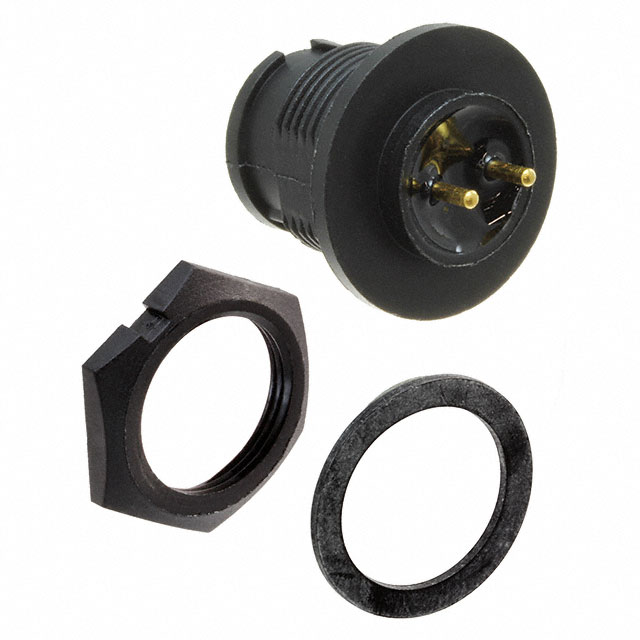

7381-2PG-3ES
ActiveConxall/Switchcraft
CONN RCPT MALE 2POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7381-2PG-3ES
ActiveConxall/Switchcraft
CONN RCPT MALE 2POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7381-2PG-3ES |
|---|---|
| Applications | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 2 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage Rating | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.20 | |
| 10 | $ 5.27 | |||
| 25 | $ 4.94 | |||
| 50 | $ 4.70 | |||
| 100 | $ 4.48 | |||
| 300 | $ 4.14 | |||
| 500 | $ 4.00 | |||
| 1000 | $ 3.81 | |||
| 2500 | $ 3.57 | |||
Description
General part information
7381-2PG Series
2 Position Circular Connector Receptacle, Male Pins Solder
