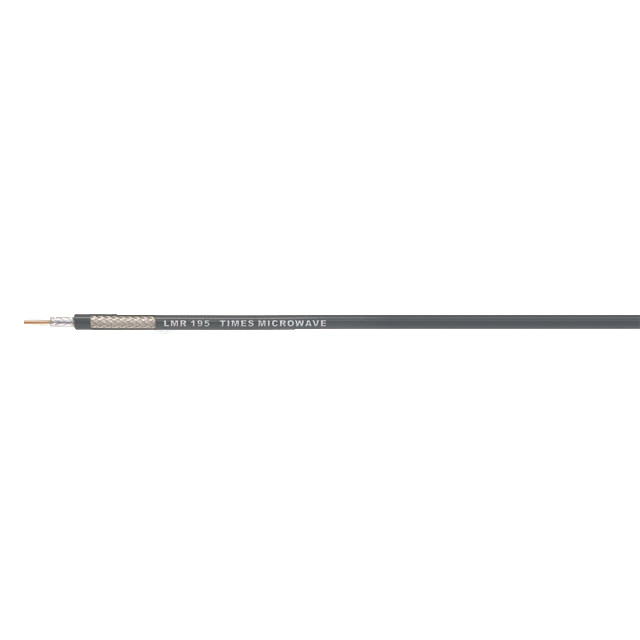

LMR-195

Unknown

Amphenol Times Microwave Systems

CABLE LMR-195 BLACK PE 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR-195

Unknown

Amphenol Times Microwave Systems

CABLE LMR-195 BLACK PE 100'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-195

Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	2.79 mm
Dielectric Diameter [diameter]	0.11 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.195 in
Jacket (Insulation) Diameter [diameter]	4.95 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Length	15.24 m
Length	50 ft
Length [x]	100 ft, 10 ft
Length [x]	30.48 m, 3.05 m
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	75

LMR-195 Series

Part	Jacket Color	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shield Material	Dielectric Material	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand	Length	Conductor Material	Shield Type	Spool Size	Spool Size	VoP, Velocity of Propagation	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Usage	Dielectric Diameter	Dielectric Diameter	Length [x]	Length [x]	Length	Length
Amphenol Times Microwave Systems LMR-195-DB	Black	50 Ohms	85 °C	-40 °C	Direct Burial Watertight	Aluminum Copper Tinned	Foam Polyethylene (FPE)	Polyethylene (PE)	0.195 in	4.95 mm	Solid	Enter Number of Feet in Order Quantity	Copper Bare	Braid	500 '	152.4 m	80	Coaxial	2.79 mm	0.11 in
Amphenol Times Microwave Systems LMR-195-MA	Black	50 Ohms	85 °C	-40 °C		Aluminum Copper Tinned	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	0.195 in	4.95 mm	Solid		Copper Bare	Braid			80	Coaxial	2.79 mm	0.11 in	Antenna
Amphenol Times Microwave Systems LMR-195-FR-W		50 Ohms	85 °C	-40 °C	Fire Retardant	Aluminum Copper Tinned	Foam Polyethylene (FPE)	Polyethylene (PE) Riser	0.195 in	4.95 mm	Solid		Copper Bare	Braid			80	Coaxial - Riser	2.79 mm	0.11 in
Amphenol Times Microwave Systems LMR-195-LLPX	Red	50 Ohms	125 °C	-40 °C		Aluminum Copper Tinned	Polytetrafluoroethylene (PTFE)	Fluoropolymer Plenum	0.175 in	4.45 mm	Solid		Copper Bare	Braid Foil			76	Coaxial - Plenum				2.87 mm	0.113 "
Amphenol Times Microwave Systems LMR-195-PVC-W		50 Ohms	85 °C	-40 °C		Aluminum Copper Tinned	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	0.195 in	4.95 mm	Solid		Copper Bare	Braid			80	Coaxial	2.79 mm	0.11 in
Amphenol Times Microwave Systems LMR-195	Black	50 Ohms	85 °C	-40 °C		Aluminum Copper Tinned	Foam Polyethylene (FPE)	Polyethylene (PE)	0.195 in	4.95 mm	Solid		Copper Bare	Braid			75	Coaxial	2.79 mm	0.11 in				10 ft 100 ft	3.05 m 30.48 m	15.24 m	50 ft
Amphenol Times Microwave Systems LMR-195-PVC	Black	50 Ohms	85 °C	-40 °C		Aluminum Copper Tinned	Foam Polyethylene (FPE)	Poly-Vinyl Chloride (PVC)	0.195 in	4.95 mm	Solid		Copper Bare	Braid			80	Coaxial	2.79 mm	0.11 in
Amphenol Times Microwave Systems LMR-195-LSZH	Black	50 Ohms	85 °C	-40 °C		Aluminum Copper Tinned	Foam Polyethylene (FPE)	Low Smoke Zero Halogen (LSZH) Polyethylene (PE)	0.195 in	4.95 mm	Solid		Copper Bare	Braid			76	Coaxial				2.87 mm	0.113 "	1 ft	300 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 58.76
		5	$ 48.08
		10	$ 37.39
		25	$ 32.05
		50	$ 29.91
		100	$ 27.78

Description

General part information

LMR-195 Series

Coaxial Cable 100.0' (30.48m) 50 Ohms
