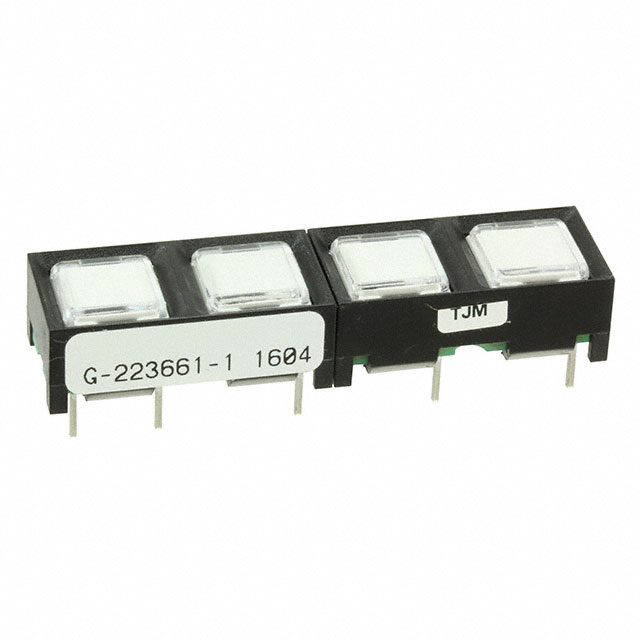

87FC3-201
ActiveGrayhill Inc.
SWITCH KEYPAD 4KEY 0.01A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
87FC3-201
ActiveGrayhill Inc.
SWITCH KEYPAD 4KEY 0.01A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 87FC3-201 |
|---|---|
| Contact Rating @ Voltage | 24 VDC, 0.01 A |
| Illumination | Non-Illuminated |
| Key Color | White |
| Key Type | Transparent Key Cap |
| Legend | Customizable (Sold Separate) |
| Legend Type | Interchangeable |
| Matrix (Columns x Rows) [custom] | 1 |
| Matrix (Columns x Rows) [custom] | 4 |
| Mounting Type | Through Hole |
| Number of Keys | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Operational Life | 3000000 Cycles |
| Output Type | Independent Switches (SPST) |
| Switch Type | Snap Dome |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 24.68 | |
| 10 | $ 19.49 | |||
| 25 | $ 17.68 | |||
| 50 | $ 16.38 | |||
| 100 | $ 15.15 | |||
| 250 | $ 13.62 | |||
| 500 | $ 12.53 | |||
Description
General part information
87FC3 Series
Keypad Switch 4 Transparent Key Cap Keys Snap Dome Contacts Independent Switches (SPST) Output Non-Illuminated 0.01A @ 24VDC
