ASJ-198-Y-HT-T/R
ActiveAdam Tech
AUDIO JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-198-Y-HT-T/R |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Phosphor Bronze |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Internal Switch(s) | Single Switch |
| Mating Length/Depth | 0.551 in |
| Mating Length/Depth | 14 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 6 Contacts, 5 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Shielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.41 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.66 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.28 | |||
| Digi-Reel® | 1 | $ 2.41 | ||
| 10 | $ 1.84 | |||
| 25 | $ 1.66 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.42 | |||
| 250 | $ 1.28 | |||
| Tape & Reel (TR) | 9600 | $ 0.91 | ||
Description
General part information
ASJ-198 Series

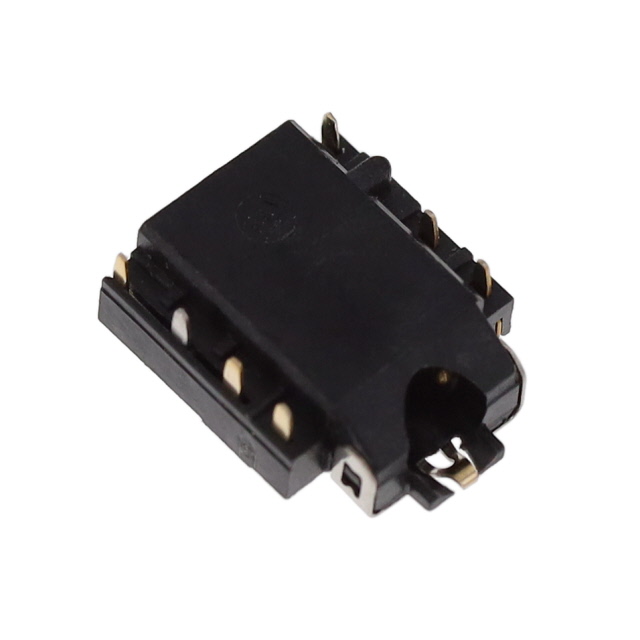

3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
