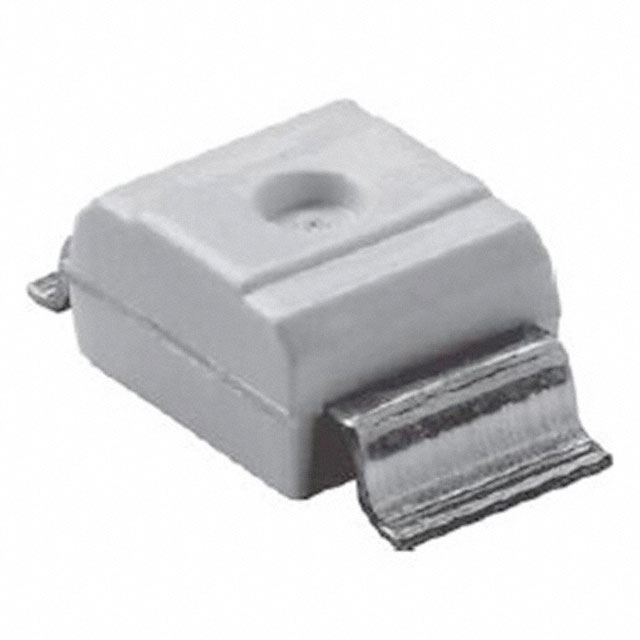

VLRK31R1S2-GS18

Obsolete

Vishay General Semiconductor - Diodes Division

LED RED CLEAR SMD BOTTOM ENT

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

LED RED CLEAR SMD BOTTOM ENT

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Wavelength - Dominant	Viewing Angle	Lens Size [diameter]	Configuration	Wavelength - Peak	Color	Current - Test	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Lens Transparency	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Millicandela Rating
Vishay General Semiconductor - Diodes Division VLRK31R1S2-GS08	2-SMD Z-Bend	630 nm	120 °	2.4 mm	Standard	643 nm	Red	20 mA	SMD	2.1 V	2.1 mm	Clear	Surface Mount Bottom Entry	2.8 mm	3.2 mm	199 mcd
Vishay General Semiconductor - Diodes Division VLRK31Q1R2-GS08	2-SMD Z-Bend	630 nm	120 °	2.4 mm	Standard	643 nm	Red	20 mA	SMD	2.1 V	2.1 mm	Clear	Surface Mount Bottom Entry	2.8 mm	3.2 mm	126 mcd
Vishay General Semiconductor - Diodes Division VLRK31R1S2-GS18	2-SMD Z-Bend	630 nm	120 °	2.4 mm	Standard	643 nm	Red	20 mA	SMD	2.1 V	2.1 mm	Clear	Surface Mount Bottom Entry	2.8 mm	3.2 mm	199 mcd
Vishay General Semiconductor - Diodes Division VLRK31Q2R1-GS18	2-SMD Z-Bend	630 nm	120 °	2.4 mm	Standard	643 nm	Red	20 mA	SMD	2.1 V	2.1 mm	Clear	Surface Mount Bottom Entry	2.8 mm	3.2 mm	115 mcd

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red 630nm LED Indication - Discrete 2.1V 2-SMD, Z-Bend
