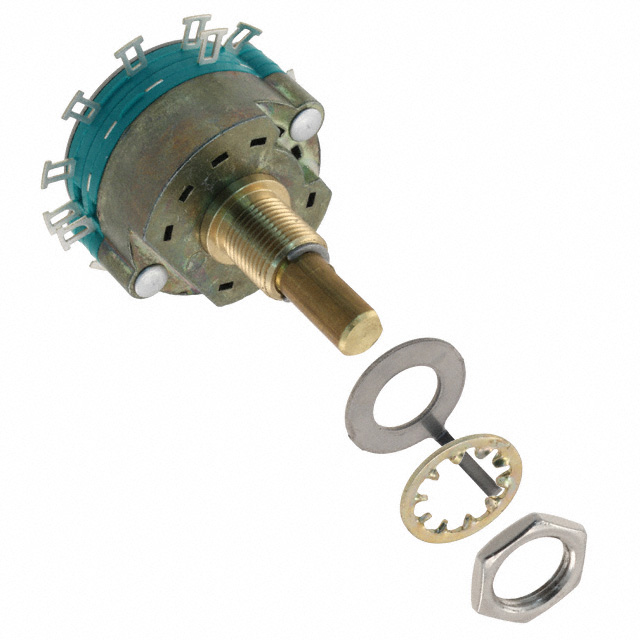

C4D0304N-A

Active

ELECTROSWITCH

SWITCH ROTARY 2-4POS 300MA 125V

Search across all available documentation for this part.

Active

ELECTROSWITCH

SWITCH ROTARY 2-4POS 300MA 125V

Technical Specifications

Parameters and characteristics for this part

Specification	C4D0304N-A

Actuator Length [x]	0.5 in
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	3P4T
Contact Finish	Silver
Contact Material	Brass
Contact Timing	Non-Shorting
Current Rating (Amps)	300 mA, 500 mA
Depth Behind Panel [z]	20.12 mm
Index Stops	Adjustable
Number of Decks [custom]	1
Number of Poles per Deck	3
Number of Positions [Max]	4
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	9.78 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Index Stops	Voltage Rating - DC	Contact Timing	Depth Behind Panel [z]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit per Deck	Number of Positions [Max]	Number of Positions [Min]	Termination Style	Actuator Type [diameter]	Actuator Type	Number of Poles per Deck	Contact Material	Number of Decks [custom]	Angle of Throw	Actuator Length [x]	Voltage Rating - AC	Contact Finish
ELECTROSWITCH C4D0304S-A	Adjustable	28 V	Shorting	20.12 mm	9.78 mm	300 mA 500 mA	3P4T	4	2	Solder Lug	6.35 mm	Flatted	3	Brass	1	30 °	0.5 in	125 V	Silver
ELECTROSWITCH C4D0304N-A	Adjustable	28 V	Non-Shorting	20.12 mm	9.78 mm	300 mA 500 mA	3P4T	4	2	Solder Lug	6.35 mm	Flatted	3	Brass	1	30 °	0.5 in	125 V	Silver
