NFL15ST157X0J3D

Obsolete

Murata Power Solutions Inc.

FILTER LC(T) 115NH/22PF SMD

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

FILTER LC(T) 115NH/22PF SMD

Technical Specifications

Parameters and characteristics for this part

Part	Filter Order	Height [z]	Height [z]	Number of Channels	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current	Voltage - Rated	Values	ESD Protection	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Type	Applications	Center / Cutoff Frequency	Technology	Attenuation Value
Murata Power Solutions Inc. NFL15ST507X0J3D	3	0.35 mm	0.014 "	1	4 Lead	0402 (1005 Metric)	85 °C	-40 °C	50 mA	6.3 V	7 pF 60 nH		1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	Low Pass	General Purpose	500 MHz	LC (T-Type)
Murata Power Solutions Inc. NFL15ST157X0J3D	3	0.35 mm	0.014 "	1	4 Lead	0402 (1005 Metric)	85 °C	-40 °C	50 mA	6.3 V	22 pF 115 nH		1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	Low Pass	General Purpose	150 MHz	LC (T-Type)	6 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

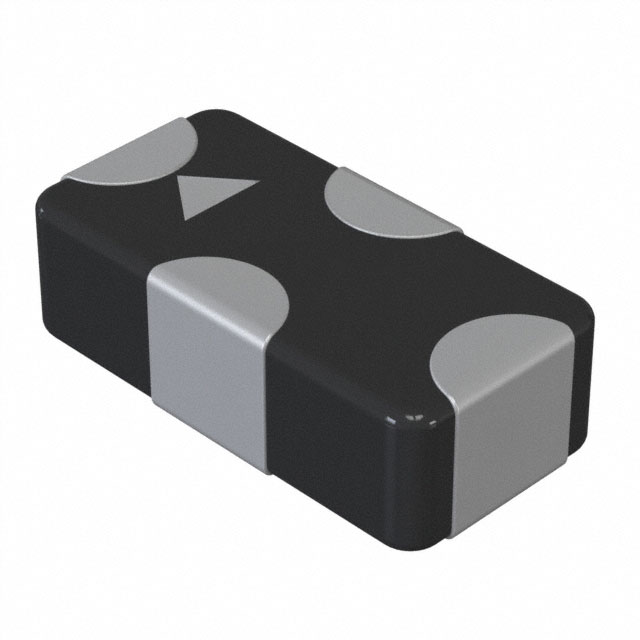

LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 115nH, C = 22pF 50 mA 0402 (1005 Metric), 4 PC Pad
