1113/63

Active

APM HEXSEAL

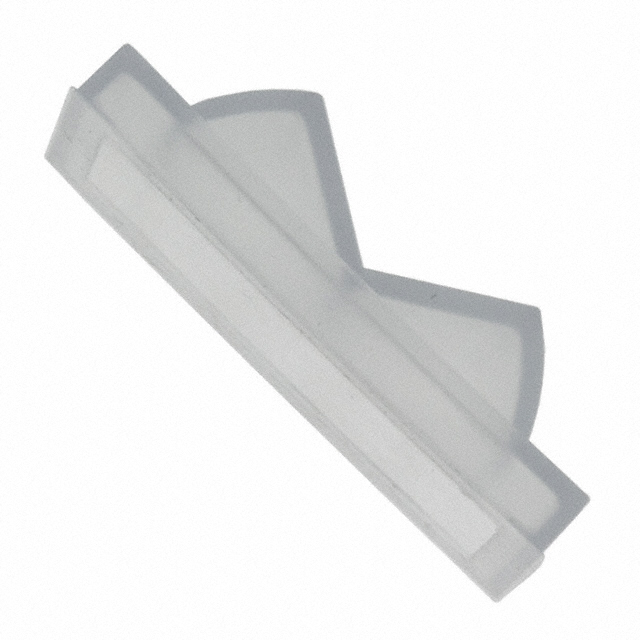

ROCKER BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

ROCKER BOOT CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	1113/63

Color	Clear
For Use With/Related Products	Multiple Series
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-62 °C
Size / Dimension [x]	1.093 in
Size / Dimension [x]	27.78 mm
Size / Dimension [y]	13.1 mm
Size / Dimension [y]	0.515 "
Size / Dimension [z]	0.297 in
Size / Dimension [z]	7.54 mm
Type	Rocker Boot

Part	For Use With/Related Products	Accessory Type	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Material	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Feature	Color	Size / Dimension [z]	Size / Dimension [y]
APM HEXSEAL 1113/71	Circuit Breaker	Boot
APM HEXSEAL 1113/70	Multiple Series		IP55 - Dust Protected Water Resistant	0.64 in	30.96 mm	0.297 in	7.54 mm	1.218 "	16.27 mm	Silicone Rubber	-62 °C	204 °C	Rocker Boot	Front of Panel	Clear
APM HEXSEAL 1113/66	Multiple Series		IP55 - Dust Protected Water Resistant							Silicone Rubber	-62 °C	204 °C	Rocker Boot	Front of Panel	Clear
APM HEXSEAL 1113/62	Multiple Series		IP55 - Dust Protected Water Resistant	0.968 in	27.78 mm	0.297 in		1.093 in		Silicone Rubber	-62 °C	204 °C	Rocker Boot	Front of Panel	Clear	7.54 mm	24.61 mm
APM HEXSEAL 1113/63	Multiple Series		IP55 - Dust Protected Water Resistant	0.515 "	27.78 mm	0.297 in		1.093 in		Silicone Rubber	-62 °C	204 °C	Rocker Boot	Front of Panel	Clear	7.54 mm	13.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROCKER BOOT CLEAR

Technical documentation and resources
