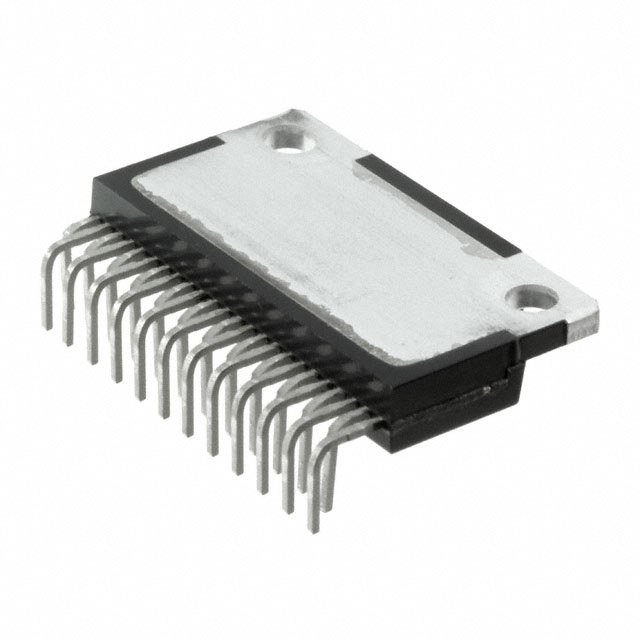

SMA6863MH

Active

Sanken Electric USA Inc.

IC MOTOR DRIVER PAR 24SIP

Search across all available documentation for this part.

Active

Sanken Electric USA Inc.

IC MOTOR DRIVER PAR 24SIP

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Function	Motor Type - AC, DC	Supplier Device Package	Output Configuration	Voltage - Load	Current - Output	Interface	Voltage - Supply	Technology	Package / Case	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature
Sanken Electric USA Inc. SMA6863MZ LF2452	Through Hole	150 °C	-20 °C	Driver	Brushless DC (BLDC)	24-SIP LF2452	Half Bridge (3)	400 V	2.5 A	Logic	20 V	Power MOSFET	24-SSIP Formed Leads	Home Appliance
Sanken Electric USA Inc. SMA6863MZ-LF2451	Through Hole	150 °C	-20 °C	Driver	Brushless DC (BLDC)	24-SIP LF2451	Half Bridge (3)	400 V	2.5 A	Logic	20 V	Power MOSFET	24-SSIP Formed Leads	Home Appliance
Sanken Electric USA Inc. SMA6863MZ	Through Hole	150 °C	-20 °C	Driver	Brushless DC (BLDC)	24-ZIP (SMA-24)	Half Bridge (3)	400 V	2.5 A	Logic	20 V	Power MOSFET	24-SSIP Formed Leads	Home Appliance
Sanken Electric USA Inc. SMA6863MH	Through Hole			Driver	Brushless DC (BLDC)	24-ZIP	Half Bridge (3)	500 V	2.5 A	Logic		Power MOSFET	24-SSIP Formed Leads	Home Appliance	13.5 V	16.5 V	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1080	$ 6.85

General part information

Motor Driver Power MOSFET Logic 24-ZIP
