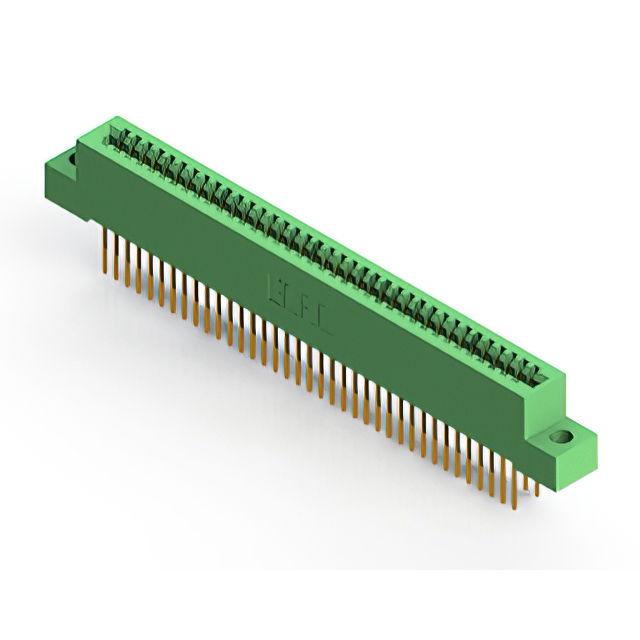

342-074-523-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

342-074-523-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 74POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-074-523-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

342-074 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Gender	Contact Type	Material - Insulation	Contact Finish	Termination	Card Type	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Rows	Mounting Type	Read Out	Features
EDAC Inc. 342-074-523-204	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Solder	Non Specified - Dual Edge	2.54 mm	0.1 in	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual
EDAC Inc. 342-074-544-207	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Wire Wrap	Non Specified - Dual Edge	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening		Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual
EDAC Inc. 342-074-544-208	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Wire Wrap	Non Specified - Dual Edge	2.54 mm	0.1 in		4-40 Flush Mount Threaded Insert Top Opening		Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual
EDAC Inc. 342-074-559-207	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Solder Wire Wrap	Non Specified - Dual Edge	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening		Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole Right Angle	Dual
EDAC Inc. 342-074-560-212	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Solder	Non Specified - Dual Edge	2.54 mm	0.1 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Board Edge Straddle Mount	Dual	Card Extender
EDAC Inc. 342-074-544-203	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Wire Wrap	Non Specified - Dual Edge	2.54 mm	0.1 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual
EDAC Inc. 342-074-500-203	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Solder Eyelet(s)	Non Specified - Dual Edge	2.54 mm	0.1 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual
EDAC Inc. 342-074-520-202	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Solder	Non Specified - Dual Edge	2.54 mm	0.1 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual
EDAC Inc. 342-074-523-203	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Solder	Non Specified - Dual Edge	2.54 mm	0.1 in	2.95 mm	Floating Bobbin Flush Mount	0.116 in	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual
EDAC Inc. 342-074-540-207	10 Áin	0.25 Ám	Female	Cantilever	Polyester Thermoplastic	Gold	Wire Wrap	Non Specified - Dual Edge	2.54 mm	0.1 in		Flush Mount M3 Threaded Insert Top Opening		Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	2	-40 °C	105 ░C	74	37	37	37	2	Through Hole	Dual

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.66

Description

General part information

342-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
