FI3D004R9

Active

Belden Inc.

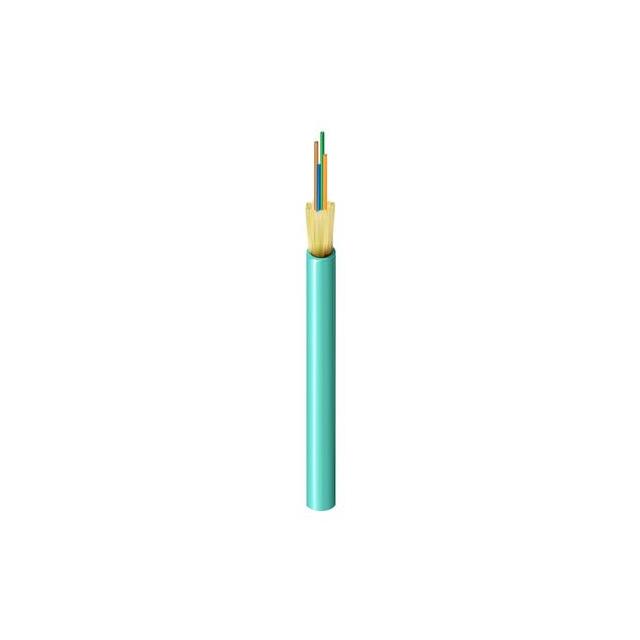

CBL FIBER OPTIC 125UM MULTIMODE

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC 125UM MULTIMODE

Technical Specifications

Parameters and characteristics for this part

Specification	FI3D004R9

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	50 µm
Features	Rip Cord
Features	4 Cable Entries
Jacket (Insulation) Diameter [diameter]	0.2 in
Jacket (Insulation) Diameter [diameter]	5.08 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Aqua
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Ratings	OFNR
Style	Multiple Fibers
Tensile Strength	20.4 kg
Type	Multimode

Part	Core Diameter [diameter]	Cladding Diameter [diameter]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Style	Jacket (Insulation) Material	Tensile Strength	Type	Features	Features	Operating Temperature [Min]	Operating Temperature [Max]	Ratings
Belden Inc. FI3D004R9	50 µm	125 µm	Aqua	0.2 in	5.08 mm	Multiple Fibers	Poly-Vinyl Chloride (PVC)	20.4 kg	Multimode	Rip Cord	4 Cable Entries	-20 C	70 °C	OFNR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1.11

General part information

Fiber Optic Cable Aqua Multimode 125µm
