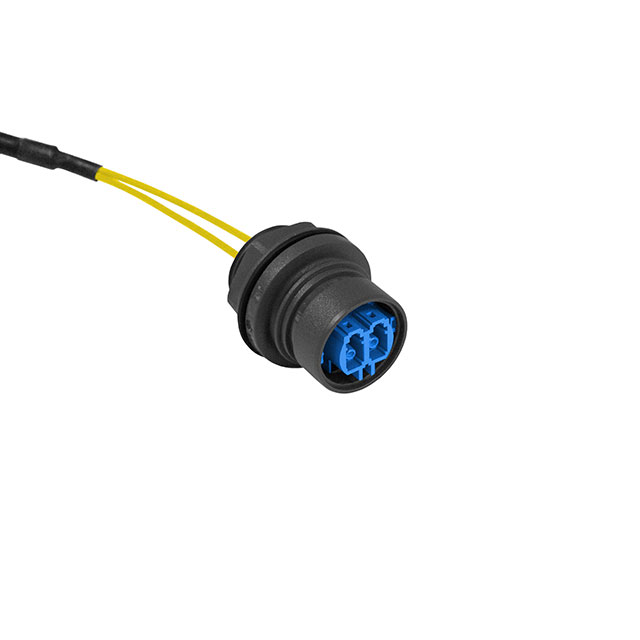

PXF6052CAA

Active

BULGIN LIMITED

FBR OPTIC CBL LC-LC DUPLEX 1M

Search across all available documentation for this part.

Active

BULGIN LIMITED

FBR OPTIC CBL LC-LC DUPLEX 1M

Technical Specifications

Parameters and characteristics for this part

Part	Features	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Material	Fiber Type	Type	Bend Radius	Color - Connectors	Color - Cable	Length - Overall	Length - Overall	Cable Type	1st Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Ratings	Bend Radius [radius]	Mounting Type	Housing Color	Housing Material	Connector Type	Ingress Protection	For Use With/Related Products	Material Flammability Rating	Simplex/Duplex	Insertion Loss
BULGIN LIMITED PXF6052BAA	IP66 IP68 IP69K Low Smoke	LC Duplex	70 °C	-25 °C	Poly-Vinyl Chloride (PVC)	62.5/125	Duplex Multimode OM1	30 mm	Aqua	Orange	5 m	16.4 ft	Buffered Fiber	LC Duplex	2 mm	0.08 in
BULGIN LIMITED PXF6052AAA	IP66 IP68 IP69K Low Smoke	LC Duplex	70 °C	-25 °C		50/125	Duplex Multimode OM3		Aqua		5 m	16.4 ft	Buffered Fiber	LC Duplex	2 mm	0.08 in	LSZH	10 mm
BULGIN LIMITED PXF6052C			70 °C	-25 °C															Panel Mount Bulkhead - Rear Side Nut	Black	Polyamide (PA) Nylon	Receptacle	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	LC Connectors	UL94 V-0	Duplex
BULGIN LIMITED PXF6052CAA	IP66 IP68 IP69K Low Smoke	LC Duplex	70 °C	-25 °C			Duplex OS1 Singlemode		Aqua	Yellow	5 m	16.4 ft	Buffered Fiber	LC Duplex	2 mm	0.08 in	LSZH	10 mm									0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.68

General part information

Cable Fiber Optic LC Duplex To LC Duplex 16.4' (5.0m)
