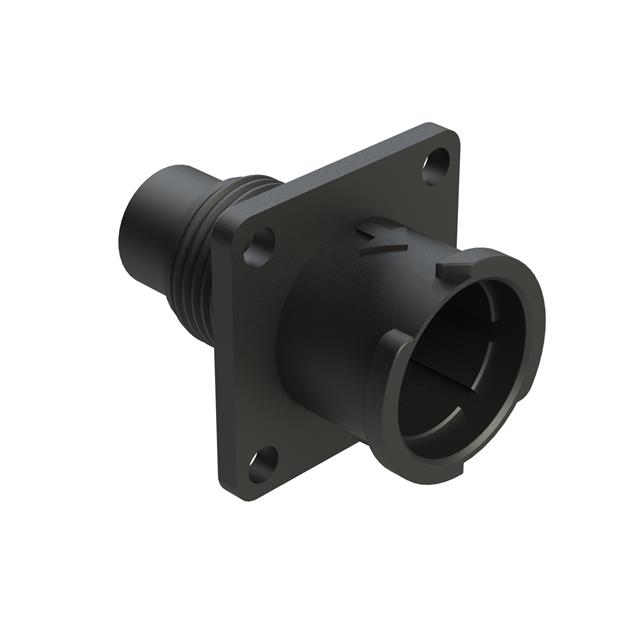

FLS010N6P03

Active

Amphenol Sine Systems Corp

6 POSITION SQUARE FLANGE RECEPTA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FLS010N6P03

Active

Amphenol Sine Systems Corp

6 POSITION SQUARE FLANGE RECEPTA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FLS010N6P03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Ingress Protection	IP69K, IP68, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	10-6
Shielding	Unshielded
Type	For Male Pins

FLS010N Series

Part	Housing Color	Number of Positions	Primary Material	Connector Type	Ingress Protection	Contact Type	Shielding	Type	Shell Size - Insert	Material Flammability Rating	Orientation	Contact Size	Mounting Feature	Fastening Type	Note	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Contact Size	Features
Amphenol Sine Systems Corp FLS010N3W3P03-PM	Black	6	Plastic	Receptacle Housing	IP67 IP68 IP69K	Crimp	Unshielded	For Male Pins	10-3W3	UL94 V-0	N	16 (3) 20 (3)	Flange	Bayonet Lock	Contacts Not Included	Thermoplastic	125 °C	-40 °C	Circular
Amphenol Sine Systems Corp FLS010N4P03-PM	Black	4	Plastic	Receptacle Housing	IP67 IP68 IP69K	Crimp	Unshielded	For Male Pins	10-4	UL94 V-0	N		Flange	Bayonet Lock	Contacts Not Included	Thermoplastic	125 °C	-40 °C	Circular	16
Amphenol Sine Systems Corp FLS010N6SHEC03	Black	6	Plastic	Receptacle Housing	IP67 IP68 IP69K	Crimp	Unshielded	For Female Sockets	10-6	UL94 V-0	N		Flange	Bayonet Lock	Contacts Not Included	Thermoplastic	125 °C	-40 °C	Circular	20	Cap (Cover)
Amphenol Sine Systems Corp FLS010N6P03	Black	6	Plastic	Receptacle Housing	IP67 IP68 IP69K	Crimp	Unshielded	For Male Pins	10-6	UL94 V-0	N		Flange	Bayonet Lock	Contacts Not Included	Thermoplastic	125 °C	-40 °C	Circular	20
Amphenol Sine Systems Corp FLS010N2P03-PM	Black	4	Plastic	Receptacle Housing	IP67 IP68 IP69K	Crimp	Unshielded	For Male Pins	10-4	UL94 V-0	N	16 (2) 20 (2)	Flange	Bayonet Lock	Contacts Not Included	Thermoplastic	125 °C	-40 °C	Circular
Amphenol Sine Systems Corp FLS010N3S03-PM	Black		Plastic	Receptacle Housing	IP67 IP68 IP69K	Crimp	Unshielded	For Female Sockets	10-3	UL94 V-0	N		Flange	Bayonet Lock	Contacts Not Included	Thermoplastic	125 °C	-40 °C	Circular	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 7.54
		10	$ 6.82
		25	$ 6.44
		50	$ 6.28
		100	$ 5.97
		250	$ 5.34
		500	$ 5.03
		1000	$ 4.40

Description

General part information

FLS010N Series

6 Position Circular Connector Receptacle Housing Panel Mount
