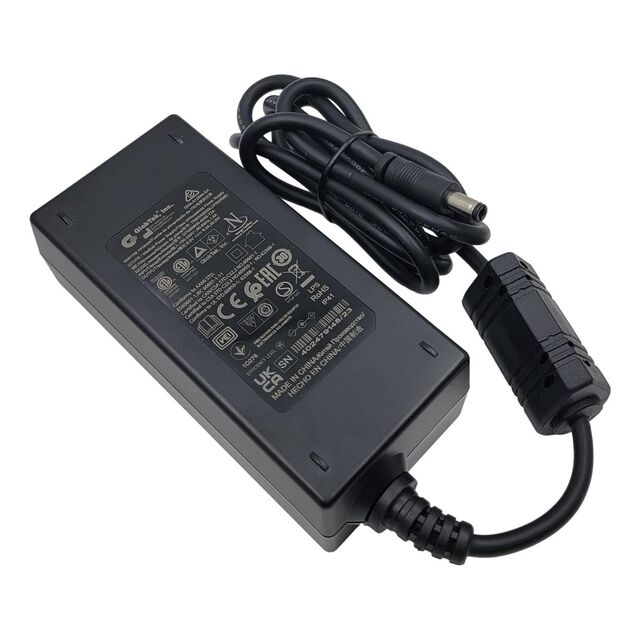

TR9WA8000LCPIM(R6B)

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 5V 40W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC DESKTOP ADAPTER 5V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	TR9WA8000LCPIM(R6B)

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, CB, PSE, UKRSepro, S-Mark, CE, ETL, LPS, VCCI, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	8 A
Efficiency	Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C18
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	4.63 in
Size / Dimension [x]	117.5 mm
Size / Dimension [y]	2.11 in
Size / Dimension [y]	53.5 mm
Size / Dimension [z]	1.35 "
Size / Dimension [z]	34.2 mm
Standard Number	62368-1, 60335-1, 60950-1, 60601-1-11, 60601-1-2
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Cord Length	Cord Length	Region Utilized	Input Type	Approval Agency	Efficiency	Form	Output Connector	Output Connector [diameter]	Output Connector [z]	Voltage - Output	Applications	Current - Output (Max) [Max]	Polarization	No Load Power Consumption [Max]	Power (Watts)	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Output Connector [x]
GlobTek, Inc. TR9WA8000CCPIM(R6B)	1.2 m	47.2 in	International	Cord	CB CE cETLus ETL LPS PSE RCM S-Mark UKRSepro VCCI	Level VI	Desktop (Class II)	Barrel Plug	2.1 mm 5.5 mm	11 mm	5 V	Household Appliances ITE (Commercial) Medical	8 A	Positive Center	75 mW	40 W	IEC 320-C18	-20 C	40 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm
GlobTek, Inc. TR9WA8000LCPIM(R6B)	1.2 m	47.2 in	International	Cord	CB CE cETLus ETL LPS PSE RCM S-Mark UKRSepro VCCI	Level VI	Desktop (Class II)	Barrel Plug	2.5 mm 5.5 mm		5 V	Household Appliances ITE (Commercial) Medical	8 A	Positive Center	75 mW	40 W	IEC 320-C18	-20 C	40 °C	90 VAC	264 VAC	60335-1 60601-1-11 60601-1-2 60950-1 62368-1	1.35 "	34.2 mm	2.11 in	4.63 in	117.5 mm	53.5 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 40 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
