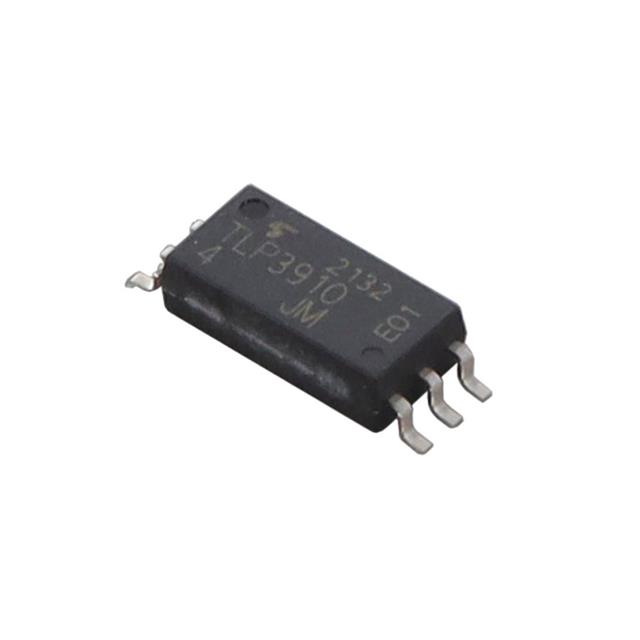

TLP3910(D4,E

Active

Toshiba Semiconductor and Storage

PHOTOVOLTAIC COUPLER; HIGH VOC;

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

PHOTOVOLTAIC COUPLER; HIGH VOC;

Technical Specifications

Parameters and characteristics for this part

Specification	TLP3910(D4,E

Current - DC Forward (If) (Max) [Max]	30 mA
Input Type	DC
Mounting Type	Surface Mount
Number of Channels [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Type	Photovoltaic
Package / Case	6-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	6-SO
Turn On / Turn Off Time (Typ) [custom]	100 µs
Turn On / Turn Off Time (Typ) [custom]	300 µs
Voltage - Forward (Vf) (Typ)	3.3 V
Voltage - Output (Max)	24 V

Part	Turn On / Turn Off Time (Typ) [custom]	Turn On / Turn Off Time (Typ) [custom]	Output Type	Current - DC Forward (If) (Max) [Max]	Mounting Type	Package / Case	Package / Case [x]	Package / Case [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max)	Input Type	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Number of Channels [custom]
Toshiba Semiconductor and Storage TLP3910(D4C20TPE	100 µs	300 µs	Photovoltaic	30 mA	Surface Mount	6-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	24 V	DC	3.3 V	6-SO	2
Toshiba Semiconductor and Storage TLP3910(E	100 µs	300 µs	Photovoltaic	30 mA	Surface Mount	6-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	24 V	DC	3.3 V	6-SO	2
Toshiba Semiconductor and Storage TLP3910(C20,E	100 µs	300 µs	Photovoltaic	30 mA	Surface Mount	6-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	24 V	DC	3.3 V	6-SO	2
Toshiba Semiconductor and Storage TLP3910(TP,E	100 µs	300 µs	Photovoltaic	30 mA	Surface Mount	6-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	24 V	DC	3.3 V	6-SO	2
Toshiba Semiconductor and Storage TLP3910(D4,E	100 µs	300 µs	Photovoltaic	30 mA	Surface Mount	6-SOIC	0.295 in	7.5 mm	125 °C	-40 °C	24 V	DC	3.3 V	6-SO	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Photovoltaic Output 5000Vrms 2 Channel 6-SO
