0024K0214-9
ActiveTE Connectivity Raychem Cable Protection

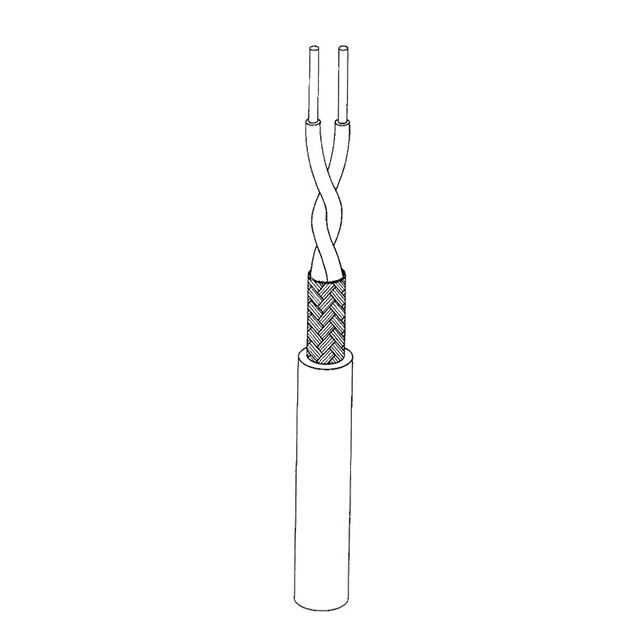

CABLE TWINAXIAL 24AWG FEET
Deep-Dive with AI
Search across all available documentation for this part.
0024K0214-9
ActiveTE Connectivity Raychem Cable Protection
CABLE TWINAXIAL 24AWG FEET
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0024K0214-9 |
|---|---|
| Cable Type | Twinaxial |
| Conductor Material | Copper Alloy, Silver Coated |
| Conductor Strand [custom] | 36 AWG |
| Conductor Strand [custom] | 19 Strands |
| Dielectric Diameter [diameter] | 0.051 " |
| Dielectric Diameter [diameter] | 1.3 mm |
| Impedance | 100 Ohms |
| Jacket (Insulation) Diameter [diameter] | 3.63 mm |
| Jacket (Insulation) Diameter [diameter] | 0.143 in |
| Jacket (Insulation) Material | Polyvinylidene Fluoride (PVDF) |
| Length | Enter Number of Feet in Order Quantity |
| Shield Coverage | 90 % |
| Shield Material | Copper, Silver Coated |
| Shield Type | Braid |
| VoP, Velocity of Propagation | 76 |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 13.88 | |
| 2 | $ 13.22 | |||
| 3 | $ 12.85 | |||
| 5 | $ 12.39 | |||
| 7 | $ 12.10 | |||
| 10 | $ 11.79 | |||
| 25 | $ 11.04 | |||
| 50 | $ 10.50 | |||
| 100 | $ 9.98 | |||
Description
General part information
0024K0214 Series
Twinaxial Cable 24 AWG Enter Number of Feet in Order Quantity 100 Ohms
Documents
Technical documentation and resources
No documents available
