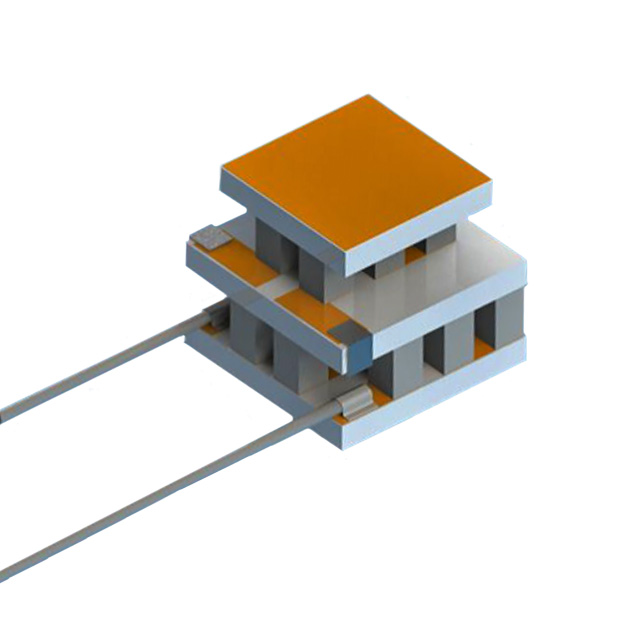

NL2022T-01AC

Active

Marlow Industries, Inc.

MULTISTAGE TEM 3.96X3.96X3.78MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

MULTISTAGE TEM 3.96X3.96X3.78MM

Technical Specifications

Parameters and characteristics for this part

Specification	NL2022T-01AC

Current - Max [Max]	1.4 A
Delta Tmax @ Th	78 °C
Features	Exterior Metallization (Both Sides), Lead Wires
Height [z]	3.78 mm
Number of Stages	2
Qmax @ Th	0.4 W
Resistance	0.56 Ohms
Size / Dimension [x]	3.96 mm
Size / Dimension [y]	3.96 mm
Voltage - Max [Max]	0.8 V

Part	Resistance	Delta Tmax @ Th	Voltage - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Features	Current - Max [Max]	Qmax @ Th	Number of Stages
Marlow Industries, Inc. NL2022T-03AC	0.56 Ohms	78 °C	0.8 V	3.96 mm	3.96 mm	3.78 mm	Lead Wires	1.4 A	0.4 W	2
Marlow Industries, Inc. NL2022T-02AC	0.56 Ohms	78 °C	0.8 V	3.96 mm	3.96 mm	3.78 mm	Exterior Metallization Lead Wires	1.4 A	0.4 W	2
Marlow Industries, Inc. NL2022T-01AC	0.56 Ohms	78 °C	0.8 V	3.96 mm	3.96 mm	3.78 mm	Exterior Metallization (Both Sides) Lead Wires	1.4 A	0.4 W	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 0.4W @ 27°C 1.4 A 85°C
