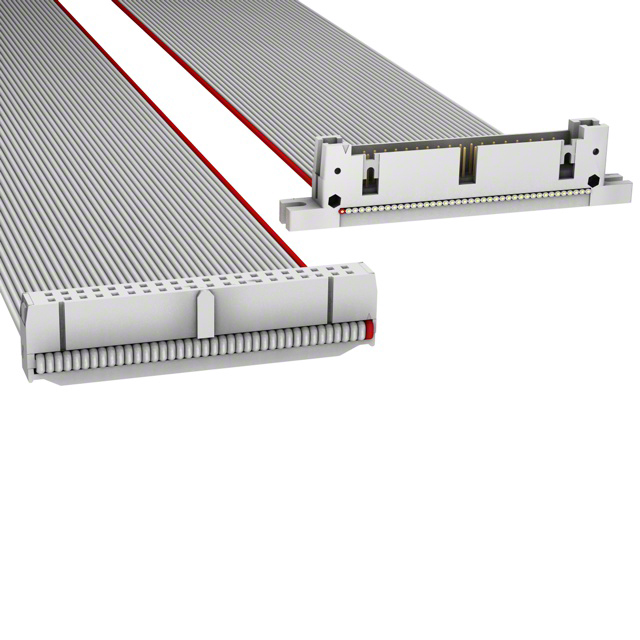

H3DWH-4036G

Active

Assmann WSW Components

IDC CBL - HHKR40H/AE40G/HHPL40H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR40H/AE40G/HHPL40H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DWH-4036G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Flange, Strain Relief (Socket)
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Contact Finish	Number of Positions	Connector Type	Pitch - Connector	Pitch - Connector	Features	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Rows	Cable Termination	Length	Length	Length	Color
Assmann WSW Components H3DWH-4018G	Gold	40	Socket to Plug	0.1 in	2.54 mm	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	457.2 mm	1.5 ft	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	IDC
Assmann WSW Components H3DWH-4006M	Gold	40	Socket to Plug	0.1 in	2.54 mm	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)			0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	IDC	152.4 mm	6 "	0.5 '	Multiple Ribbon
Assmann WSW Components H3DWH-4036G	Gold	40	Socket to Plug	0.1 in	2.54 mm	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	914.4 mm	3 ft	0.05 "	1.27 mm	15 µin	0.38 µm	Unshielded	2	IDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)
