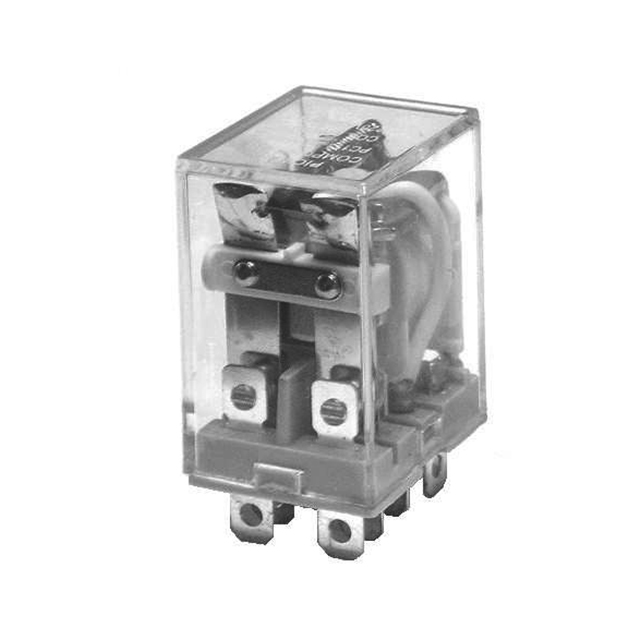

PC113-2C-C1-120A-X
ActivePicker Components
RELAY GEN PURPOSE DPDT 12A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC113-2C-C1-120A-X
ActivePicker Components
RELAY GEN PURPOSE DPDT 12A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC113-2C-C1-120A-X |
|---|---|
| Coil Current | 26.4 mA |
| Coil Insulation | Class F |
| Coil Resistance | 4.55 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 12 A |
| Load - Max Switching | 336 W, 3000 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 96 VAC |
| Must Release Voltage | 36 VAC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Solder Lug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.04 | |
| 20 | $ 5.66 | |||
| 40 | $ 4.78 | |||
| 80 | $ 4.53 | |||
| 240 | $ 4.02 | |||
| 440 | $ 3.77 | |||
| 960 | $ 3.52 | |||
Description
General part information
PC113-2C Series
General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
