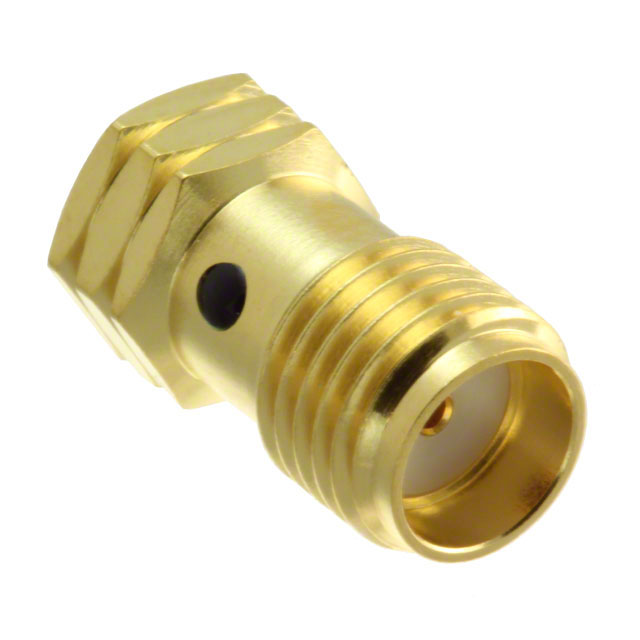

MM121540
ActiveMurata Power Solutions Inc.
CONN ADAPT SMA JACK TO JSC PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MM121540
ActiveMurata Power Solutions Inc.
CONN ADAPT SMA JACK TO JSC PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MM121540 |
|---|---|
| Adapter Series | SMA to JSC |
| Adapter Type | Plug to Jack |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | JSC Plug, Male Pin |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 12 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 10000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 70.40 | |
| 10 | $ 64.61 | |||
| 25 | $ 62.12 | |||
| 50 | $ 60.05 | |||
| 100 | $ 56.74 | |||
Description
General part information
MM121 Series
Adapter Coaxial Connector SMA Jack, Female Socket To JSC Plug, Male Pin 50 Ohms
