W58-124-9019910
ObsoleteITT Cannon, LLC

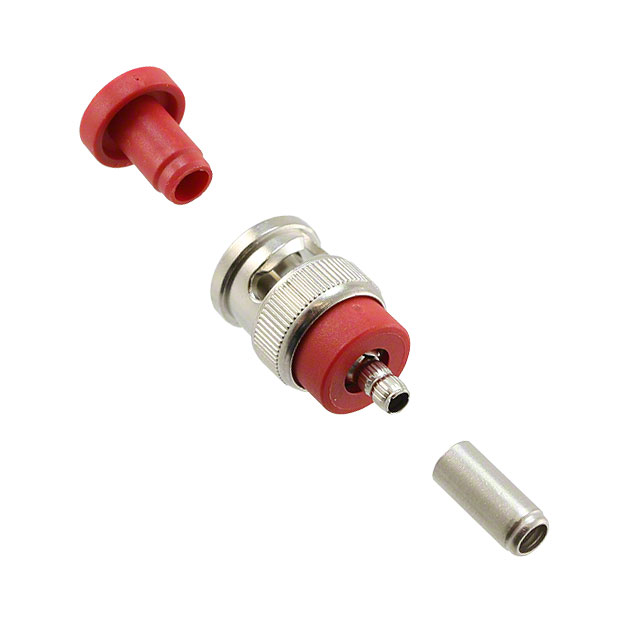

CONN BNC PLUG STR 75 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W58-124-9019910
ObsoleteITT Cannon, LLC
CONN BNC PLUG STR 75 OHM CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W58-124-9019910 |
|---|---|
| Body Finish | Nickel |
| Body Material | Phosphor Bronze |
| Cable Group | 735A |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Includes | 1 Connector, 1 Ferrule |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
W58-124 Series
BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
