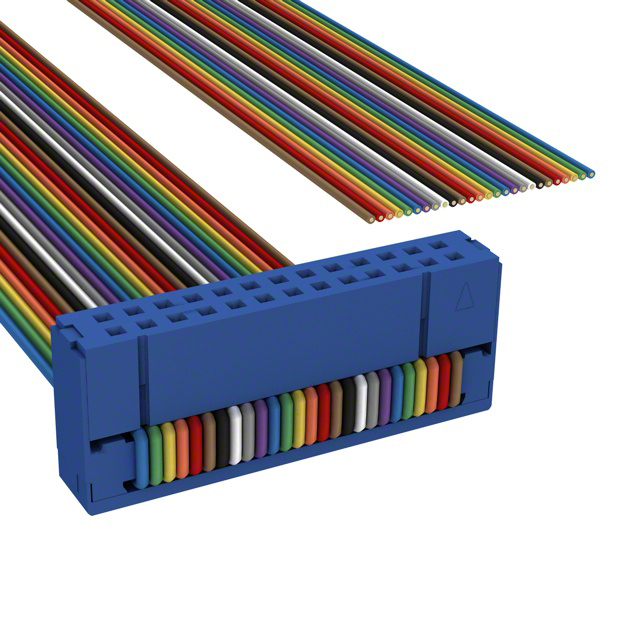

C1BXS-2636M

Active

CW Industries

IDC CABLE - CSR26S/AE26M/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR26S/AE26M/X

Technical Specifications

Parameters and characteristics for this part

Part	Features	Cable Termination	Pitch - Connector	Pitch - Connector	Contact Finish	Connector Type	Number of Rows	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Positions	Color
CW Industries C1BXS-2636G	Strain Relief	IDC	0.1 in	2.54 mm	Tin	Socket to Cable	2	3 ft	914.4 mm	0.05 "	1.27 mm	2.54 µm	100 µin	Unshielded	26
CW Industries C1BXS-2036M	Strain Relief	IDC	0.1 in	2.54 mm	Tin	Socket to Cable	2	3 ft	914.4 mm	0.05 "	1.27 mm	2.54 µm	100 µin	Unshielded	20	Multiple Ribbon
CW Industries C1BXS-2636M	Strain Relief	IDC	0.1 in	2.54 mm	Tin	Socket to Cable	2	3 ft	914.4 mm	0.05 "	1.27 mm	2.54 µm	100 µin	Unshielded	26	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
