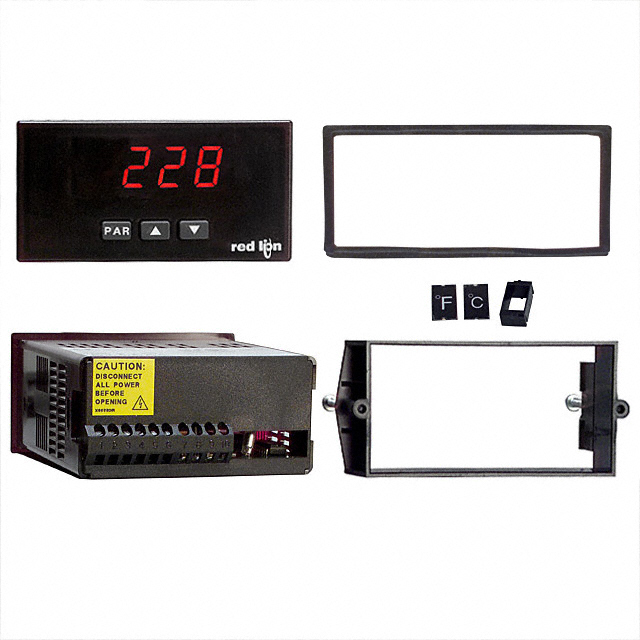

PAXLRT00

Obsolete

RED LION CONTROLS

TEMP METER LED PANEL MOUNT

Search across all available documentation for this part.

Obsolete

RED LION CONTROLS

TEMP METER LED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	PAXLRT00

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.56 in
Display Type	LED - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	850 °C
Measuring Range [Min]	-200 °C
Measuring Type	RTD
Number of Characters Per Row	4
Panel Cutout Dimensions [x]	92 mm
Panel Cutout Dimensions [y]	45 mm
Termination Style	Screw Terminal
Type	Temperature Meter
Voltage - Supply [Max]	250 VAC
Voltage - Supply [Min]	85 VAC

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Characters Per Row	Measuring Type	Display Characters - Height [z]	Display Characters - Height [z]	Termination Style	Display Type	Measuring Range [Min]	Measuring Range [Max]	Ingress Protection
RED LION CONTROLS PAXLRT00	92 mm	45 mm	Temperature Meter	85 VAC	250 VAC	4	RTD	14.2 mm	0.56 in	Screw Terminal	LED - Red Characters	-200 °C	850 °C	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Temperature Meter LED - Red Characters Display Panel Mount
