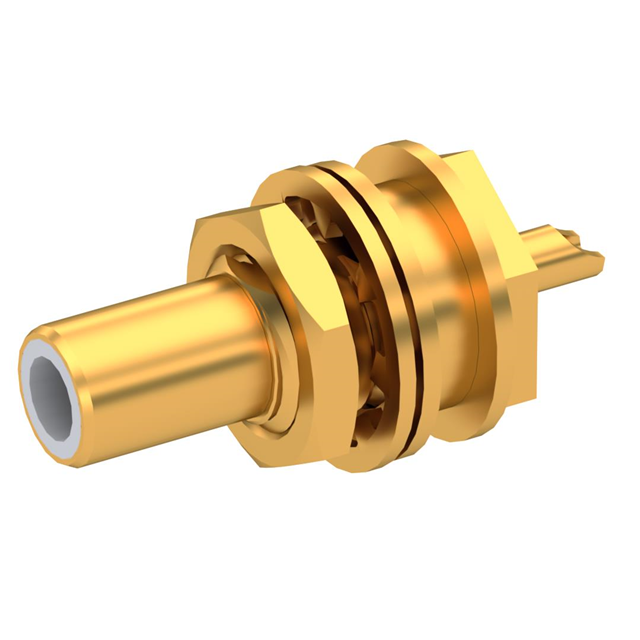

3004-1511-600

Active

Radiall USA, Inc.

SLB / STRAIGHT JACK RECEPTACLE M

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SLB / STRAIGHT JACK RECEPTACLE M

Technical Specifications

Parameters and characteristics for this part

Specification	3004-1511-600

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SLB
Connector Type	Male Pin, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Impedance	Frequency - Max [Max]	Features	Connector Style	Number of Ports	Shield Termination	Housing Color	Insertion Loss	Fastening Type	Center Contact Material	Center Contact Plating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Mounting Feature	Body Material	Connector Type	Contact Termination	Dielectric Material
Radiall USA, Inc. 3004-1511-600	50 Ohms	4 GHz	Extended Insulation	SLB	1	Solder	Gold	0.3 dB	Snap-On	Brass	Gold	500	-65 ░C	165 °C	Gold	Bulkhead - Front Side Nut	Brass	Jack Male Pin	Solder Cup	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 26.07

General part information

SLB Connector Jack, Male Pin 50 Ohms Panel Mount Solder Cup

Technical documentation and resources

No documents available
