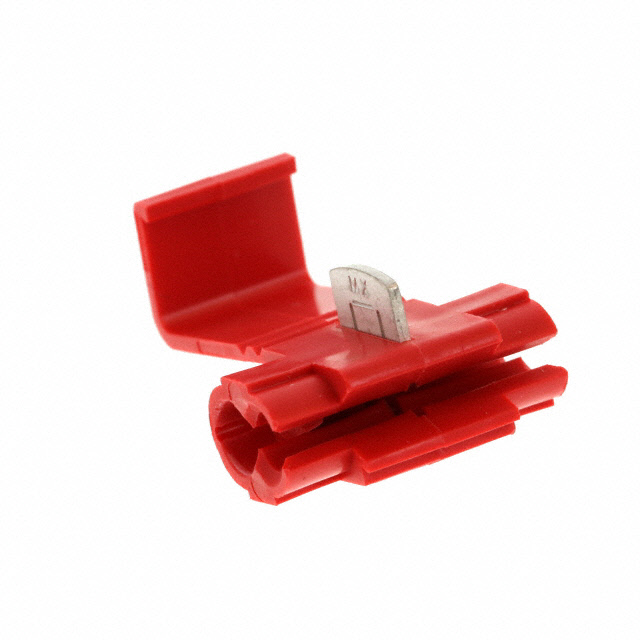

0192160005
ActiveMolex
CONN INLINE TAP 18-22 AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0192160005
ActiveMolex
CONN INLINE TAP 18-22 AWG IDC
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0192160005 |
|---|---|
| Color | Red |
| Insulation | Fully Insulated |
| Number of Wire Entries | 2 |
| Terminal Type | Inline, Tap (Suitcase) |
| Termination | IDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.41 | |
| 10 | $ 0.30 | |||
| 25 | $ 0.27 | |||
| 50 | $ 0.25 | |||
| 100 | $ 0.23 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.18 | |||
| 2500 | $ 0.17 | |||
Description
General part information
019216 Series
Terminal Inline, Tap (Suitcase) Connector IDC 18-22 AWG Red
