R1206-010-R

Active

OptiFuse

PTC RESET FUSE 60V 100MA 1206

Search across all available documentation for this part.

Active

OptiFuse

PTC RESET FUSE 60V 100MA 1206

Technical Specifications

Parameters and characteristics for this part

Specification	R1206-010-R

Approval Agency	cUL, TUV, UL
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Max [Max]	100 A
Current - Trip (It)	250 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3216 Metric
Package / Case	1206
Package / Case	Concave
Resistance - Initial (Ri) (Min)	1.6 Ohms
Resistance - Post Trip (R1) (Max) [Max]	15 Ohms
Size / Dimension [x]	3.25 mm
Size / Dimension [x]	0.128 in
Size / Dimension [y]	1.65 mm
Size / Dimension [y]	0.065 in
Thickness (Max) [Max]	0.033 in
Thickness (Max) [Max]	0.85 mm
Time to Trip	1 s
Type	Polymeric
Voltage - Max [Max]	60 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Time to Trip	Mounting Type	Current - Trip (It)	Current - Hold (Ih) (Max) [Max]	Resistance - Initial (Ri) (Min)	Voltage - Max [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Type	Resistance - Post Trip (R1) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Package / Case	Package / Case	Resistance - Initial (Ri) (Min) [Min]
OptiFuse R1206-010	1.65 mm	3.25 mm	0.065 in	0.128 in	100 A	1 s	Surface Mount	250 mA	100 mA	1.6 Ohms	60 V	0.033 in	0.85 mm	Polymeric	15 Ohms	1206 (3216 Metric)	85 °C	-40 °C	cUL TUV UL
OptiFuse R1206-010-R	1.65 mm	3.25 mm	0.065 in	0.128 in	100 A	1 s	Surface Mount	250 mA	100 mA	1.6 Ohms	60 V	0.033 in	0.85 mm	Polymeric	15 Ohms	Concave	85 °C	-40 °C	cUL TUV UL	3216 Metric	1206
OptiFuse R1206-005-R	1.65 mm	3.25 mm	0.065 in	0.128 in	100 A	1.5 s	Surface Mount	150 mA	50 mA		60 V	0.033 in	0.85 mm	Polymeric	50 Ohms	Concave	85 °C	-40 °C	cUL TUV UL	3216 Metric	1206	3.6 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

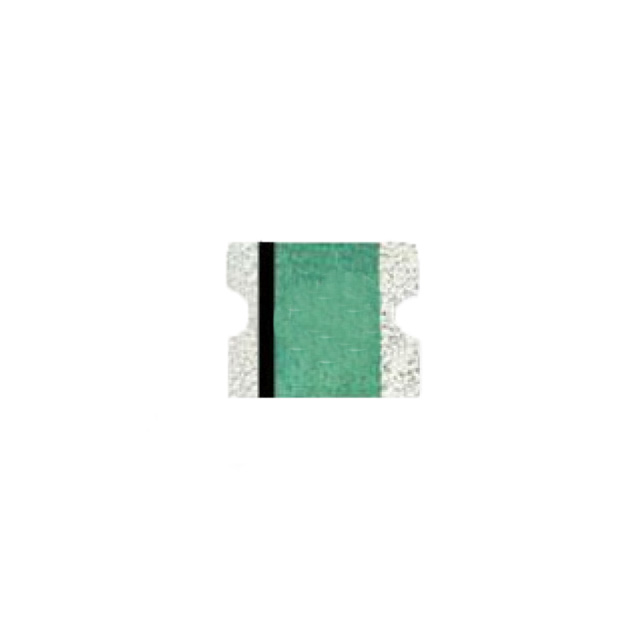

Polymeric PTC Resettable Fuse 60V 100 mA Ih Surface Mount 1206 (3216 Metric), Concave
