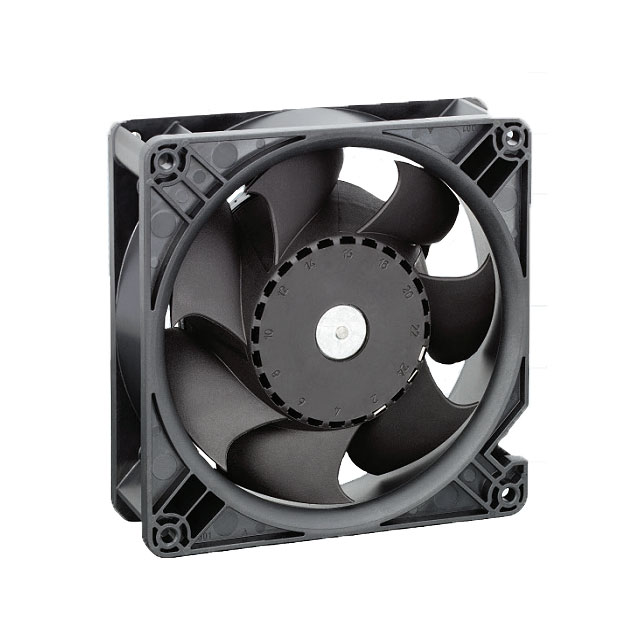

DV5214/2N

Active

ebm-papst Inc.

FAN AXIAL 127X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 127X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	DV5214/2N

Air Flow	4.45 m³/min
Air Flow	159 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	56 dB
Operating Temperature [Max]	65 °C
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	20.4 W
RPM	5000 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	16 VDC
Width [y]	38 mm

Part	RPM	Voltage Range [Max]	Voltage Range [Min]	Termination	Ingress Protection	Voltage - Rated	Air Flow	Air Flow	Material - Frame	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Blade	Fan Type	Bearing Type	Width [y]	Noise	Approval Agency	Lifetime @ Temp.	Weight	Weight	Features
ebm-papst Inc. DV5214NU	4930 RPM	26.4 VDC	18 VDC	2 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	4.45 m³/min	158.9 CFM	Aluminum	19.8 W	127 mm	127 mm	-20 °C	-20 C	65 °C	65 °C	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	Ball	38 mm	56 dB	UL
ebm-papst Inc. DV5214N	5000 RPM	30 V	16 VDC	2 Wire Leads		24 VDC	4.45 m³/min	158.9 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	19 W	127 mm	127 mm	-20 °C	-20 C	65 °C	65 °C	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	Ball	38 mm	56 dB	CE CSA UL VDE	70000 Hrs	0.915 lb	415.04 g
ebm-papst Inc. DV5214/2N	5000 RPM	30 V	16 VDC	3 Wire Leads	IP54 - Dust Protected Water Resistant	24 VDC	4.45 m³/min	159 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	20.4 W	127 mm	127 mm	-20 °C	-20 C	65 °C	65 °C	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	Ball	38 mm	56 dB		70000 Hrs			Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.44

General part information

Fan Tubeaxial 24VDC Square - 127mm L x 127mm H Ball 159.0 CFM (4.45m³/min) 3 Wire Leads
