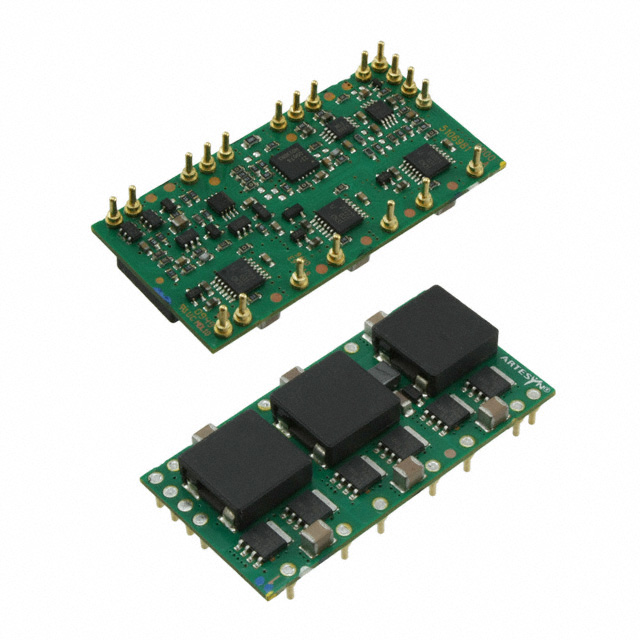

PTH04040WAD
ObsoleteARTESYN / Advanced Energy
CONV DC/DC 3.3VIN ADJOUT 60A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTH04040WAD
ObsoleteARTESYN / Advanced Energy
CONV DC/DC 3.3VIN ADJOUT 60A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH04040WAD |
|---|---|
| Current - Output (Max) [Max] | 60 A |
| Efficiency | 93 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 20-DIP Module |
| Size / Dimension [x] | 2.05 " |
| Size / Dimension [x] | 52 mm |
| Size / Dimension [y] | 1.05 in |
| Size / Dimension [y] | 26.6 mm |
| Size / Dimension [z] | 9 mm |
| Size / Dimension [z] | 0.36 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.95 V |
| Voltage - Output 1 [Max] | 2.5 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 62.22 | |
| 5 | $ 61.73 | |||
| 12 | $ 61.24 | |||
| 36 | $ 59.30 | |||
| 48 | $ 56.38 | |||
| 84 | $ 52.49 | |||
Description
General part information
PTH04040 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 60A 2.95V - 5.5V Input
