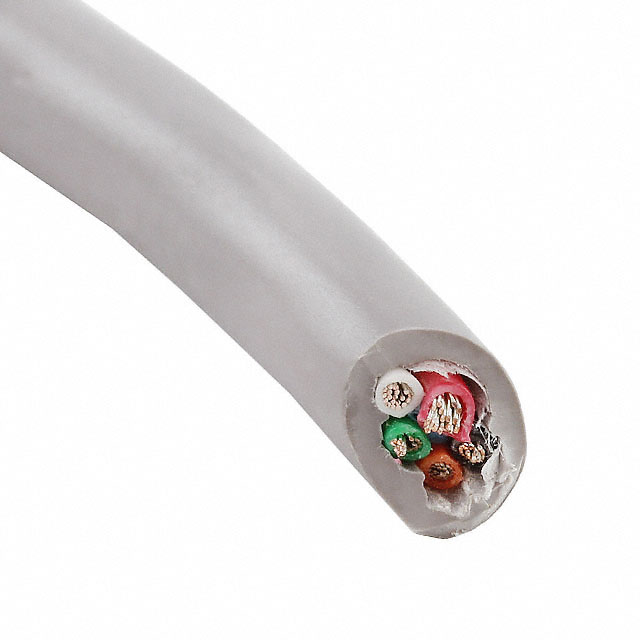

1896/5L SL001

Active

ALPHA WIRE

CABLE 5COND 20AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 20AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1896/5L SL001

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.232 in
Jacket (Insulation) Diameter [diameter]	5.89 mm
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Usage	Conductor Material	Number of Conductors	Cable Type	Wire Gauge	Voltage
ALPHA WIRE 1896/5L SL001	0.232 in	5.89 mm	Slate	28	7	1000 ft	304.8 m	0.025 in	0.635 mm	Low Smoke Zero Halogen (LSZH)	Communication Control	Copper Tinned	5	Multi-Conductor	20 AWG	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 946.88

General part information

5 Conductor Multi-Conductor Cable Slate 20 AWG 1000.0' (304.8m)
