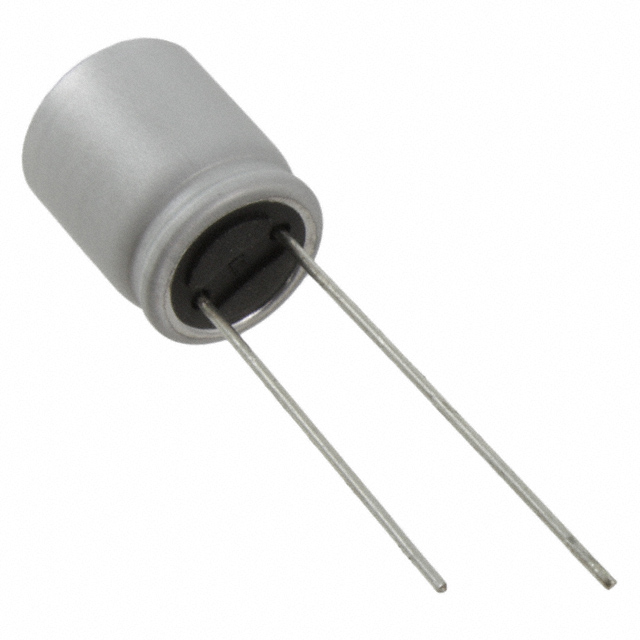

APSF160ELL471MJB5S

Active

Chemi-Con

CAP ALUM POLY 470UF 20% 16V TH

Search across all available documentation for this part.

Active

Chemi-Con

CAP ALUM POLY 470UF 20% 16V TH

Technical Specifications

Parameters and characteristics for this part

Specification	APSF160ELL471MJB5S

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	10 mOhm
Height - Seated (Max) [Max] [z]	13 mm
Height - Seated (Max) [Max] [z]	0.512 "
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	20000 Hrs, 105 °C
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Ripple Current @ High Frequency	6.1 A
Ripple Current @ Low Frequency	610 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Capacitance	Voltage - Rated	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Tolerance	Mounting Type	Ripple Current @ High Frequency	Applications	Lead Spacing	Lead Spacing
Chemi-Con APSF160ETD471MJB5S	105 ░C	-55 °C	10 mm	0.394 in	Polymer	470 µF	16 V	610 mA	13 mm	0.512 "	Radial Can	105 °C 20000 Hrs	10 mOhm	20 %	Through Hole	6.1 A	General Purpose	5 mm	0.197 in
Chemi-Con APSF160ELL471MJB5S	105 ░C	-55 °C	10 mm	0.394 in	Polymer	470 µF	16 V	610 mA	13 mm	0.512 "	Radial Can	105 °C 20000 Hrs	10 mOhm	20 %	Through Hole	6.1 A	General Purpose	5 mm	0.197 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

470 µF 16 V Aluminum - Polymer Capacitors Radial, Can 10mOhm 20000 Hrs @ 105°C
