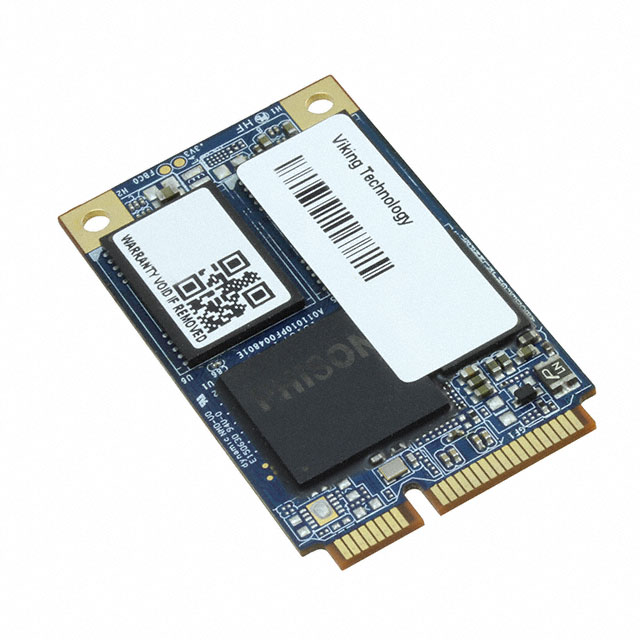

VPFEM2001TTCCMTL

Active

Viking Technology

SSD 960GB MSATA MLC SATAIII 3.3V

Search across all available documentation for this part.

Active

Viking Technology

SSD 960GB MSATA MLC SATAIII 3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	VPFEM2001TTCCMTL

Form Factor	mSATA
Memory Size	960 GB
Memory Type	Solid State Drive (SSD) FLASH - NAND (MLC)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Size / Dimension [x]	2 in
Size / Dimension [y]	29.85 mm
Size / Dimension [z]	4 mm
Speed - Read	540 MB/s
Speed - Write	510 MB/s
Type	SATA III
Voltage - Supply	3.3 V

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Type	Speed - Write	Speed - Read	Voltage - Supply	Type	Form Factor	Memory Size
Viking Technology VPFEM2001TTCCMTL	4 mm	2 in	29.85 mm	70 °C	0 °C	Solid State Drive (SSD) FLASH - NAND (MLC)	510 MB/s	540 MB/s	3.3 V	SATA III	mSATA	960 GB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1176.50

General part information

Solid State Drive (SSD) FLASH - NAND (MLC) 960GB SATA III mSATA 3.3V

Technical documentation and resources

No documents available
