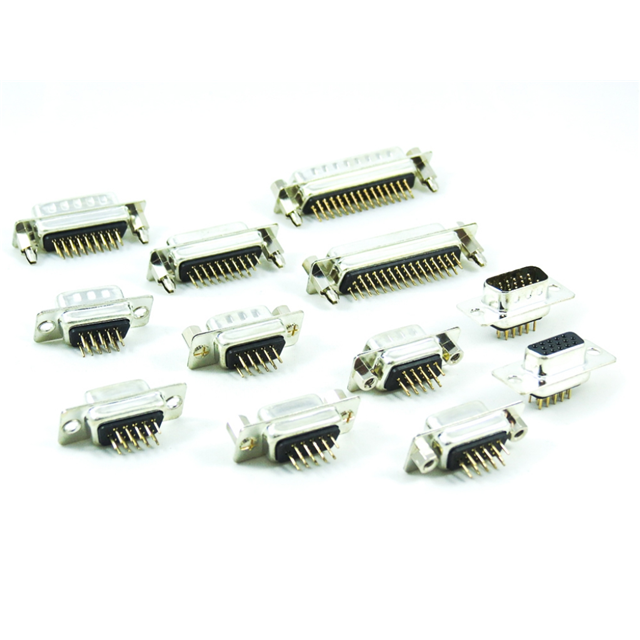

7915-26FTBG00N2N5A

Active

Oupiin

CONN D-SUB HD RCPT 26P VERT SLDR

Search across all available documentation for this part.

Active

Oupiin

CONN D-SUB HD RCPT 26P VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	7915-26FTBG00N2N5A

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

Part	Connector Type	Material Flammability Rating	Contact Type	Number of Rows	Shell Size, Connector Layout	Shell Size, Connector Layout	Color	Contact Finish Thickness	Contact Material	Mounting Type	Contact Finish	Number of Positions	Connector Style	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination
Oupiin 7915-26FTBG00N2N5A	Receptacle Female Sockets	UL94 V-0	Signal	3	2	(DA A) High Density	Black	Flash	Brass	Through Hole	Gold	26	D-Sub High Density	Polybutylene Terephthalate (PBT)	105 ░C	-55 °C	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
