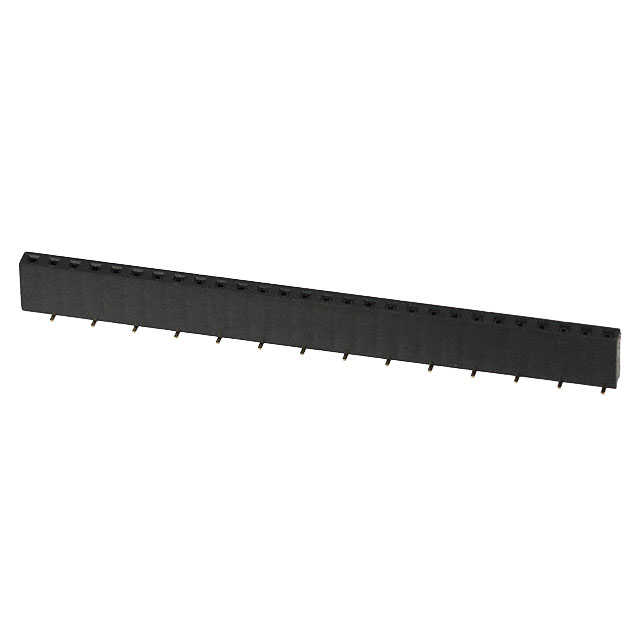

PPPC281KFXC

Obsolete

Sullins Connector Solutions

CONN HDR 28POS 0.1 GOLD SMD

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN HDR 28POS 0.1 GOLD SMD

Technical Specifications

Parameters and characteristics for this part

Specification	PPPC281KFXC

Connector Type	Header, Top or Bottom Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	28
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	250 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Mounting Type	Fastening Type	Insulation Height	Insulation Height	Contact Material	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Connector Type	Contact Type	Contact Finish Thickness - Post	Number of Positions Loaded	Termination	Number of Positions	Contact Finish - Post	Material Flammability Rating	Voltage Rating	Contact Shape	Current Rating (Amps)	Insulation Material	Insulation Color	Contact Finish - Mating	Contact Length - Post [x]
Sullins Connector Solutions PPPC281LGBN-RC	-40 °C	105 ░C	1	Through Hole Right Angle	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Flash	0.1 in	2.54 mm	3.15 mm	0.124 "	Header	Female Socket	Flash	All	Solder	28	Gold	UL94 V-0	250 VDC	Square	3 A	Polyester	Black	Gold
Sullins Connector Solutions PPPC281LFBN	-40 °C	105 ░C	1	Through Hole	Push-Pull	0.335 "	8.51 mm	Phosphor Bronze	Flash	0.1 in	2.54 mm	3.2 mm		Header	Female Socket	Flash	All	Solder	28	Gold	UL94 V-0	250 VDC	Square	3 A	Polyester	Black	Gold	0.126 in
Sullins Connector Solutions PPPC281LFBN-RC	-40 °C	105 ░C	1	Through Hole	Push-Pull	0.335 "	8.51 mm	Phosphor Bronze	Flash	0.1 in	2.54 mm	3.2 mm		Header	Female Socket	Flash	All	Solder	28	Gold	UL94 V-0	250 VDC	Square	3 A	Polyester	Black	Gold	0.126 in
Sullins Connector Solutions PPPC281KFXC	-40 °C	105 ░C	1	Surface Mount	Push-Pull	0.28 in	7.1 mm	Phosphor Bronze	Flash	0.1 in	2.54 mm			Header Top or Bottom Entry	Female Socket	Flash	All	Solder	28	Gold	UL94 V-0	250 VDC	Square	3 A	Polyester	Black	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

28 Position Header, Top or Bottom Entry Connector 0.100" (2.54mm) Surface Mount Gold
