FGN0.63BK200

Active

Techflex

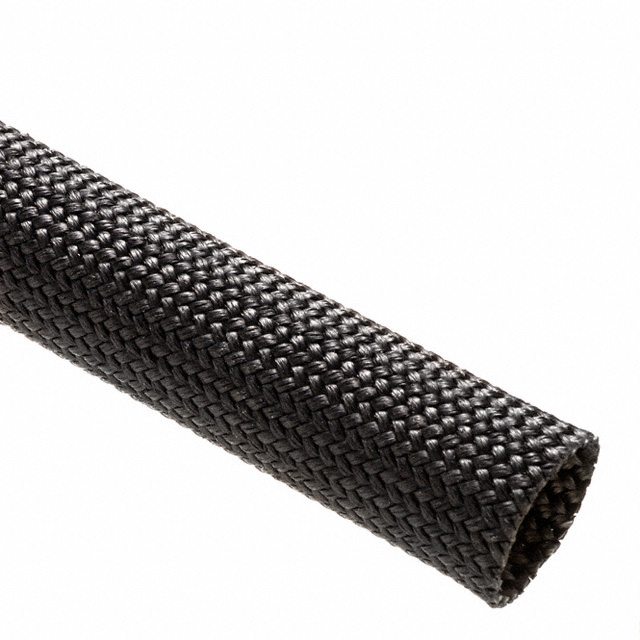

EXPAND SLEEVING 5/8" X 200' BLK

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 5/8" X 200' BLK

Technical Specifications

Parameters and characteristics for this part

Specification	FGN0.63BK200

Abrasion Protection	Abrasion and Cut Resistant
Color	Black
Diameter - Inside, Non-Expanded [diameter]	15.88 mm
Diameter - Inside, Non-Expanded [diameter]	0.625 in
Features	Vibration Resistant, Clean Cut, Chemical Resistant
Heat Protection	Heat Resistant
Length	60.96 m
Length	200 '
Liquid Protection	Gasoline Resistant
Material	Fiberglass, Resin Coated, Halogen Free
Material Flammability Rating	UL VW-1
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	1.17 mm
Wall Thickness	0.046 in

Part	Material Flammability Rating	Length	Length	Heat Protection	Wall Thickness	Wall Thickness	Abrasion Protection	Type Attributes	Material	Liquid Protection	Features	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Type	Color
Techflex FGN0.63BK200	UL VW-1	60.96 m	200 '	Heat Resistant	1.17 mm	0.046 in	Abrasion and Cut Resistant	Expandable	Fiberglass Halogen Free Resin Coated	Gasoline Resistant	Chemical Resistant Clean Cut Vibration Resistant	15.88 mm	0.625 in	Sleeve	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Sleeve X 200' (60.96m) Black

Technical documentation and resources
