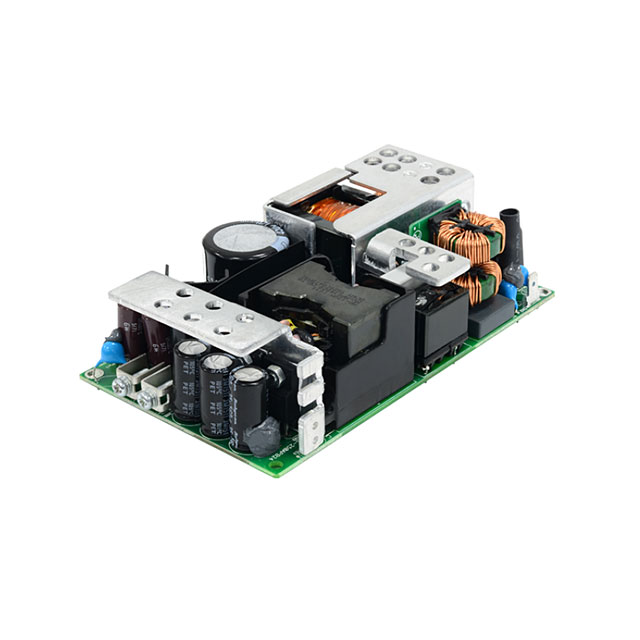

MDS-250ADB24 AA

Active

Delta Electronics

AC/DC CONVERTER 24V 150W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 24V 150W

Technical Specifications

Parameters and characteristics for this part

Specification	MDS-250ADB24 AA

Applications	ITE (Commercial), Medical
Approval Agency	TUV, UL, SIQ, CE, EN, CB Scheme
Current - Output 1	5.62 A
Efficiency	93 %
Features	Remote On/Off, Standby Output, PFC, Universal Input, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	250 W
Power (Watts)	150 W
Size / Dimension [x]	140 mm
Size / Dimension [x]	5.51 "
Size / Dimension [y]	89 mm
Size / Dimension [y]	3.5 in
Size / Dimension [z]	45 mm
Size / Dimension [z]	1.77 in
Standard Number	62368-1, 60950-1, 50581, 55032, 55011, 60601-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Applications	Power (Watts)	Power (Watts)	Mounting Type	Current - Output 1	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Features	Efficiency	Voltage - Output 1	Voltage - Isolation	Type
Delta Electronics MDS-250ADB24 AA	140 mm	5.51 "	89 mm	45 mm	3.5 in	1.77 in	50581 55011 55032 60601-1 60950-1 62368-1	90 VAC	264 VAC	CB Scheme CE EN SIQ TUV UL	ITE (Commercial) Medical	250 W	150 W	Chassis Mount	5.62 A	1	-10 °C	70 °C	PFC Remote On/Off Remote Sense Standby Output Universal Input	93 %	24 V	4000 V	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 101.47

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
