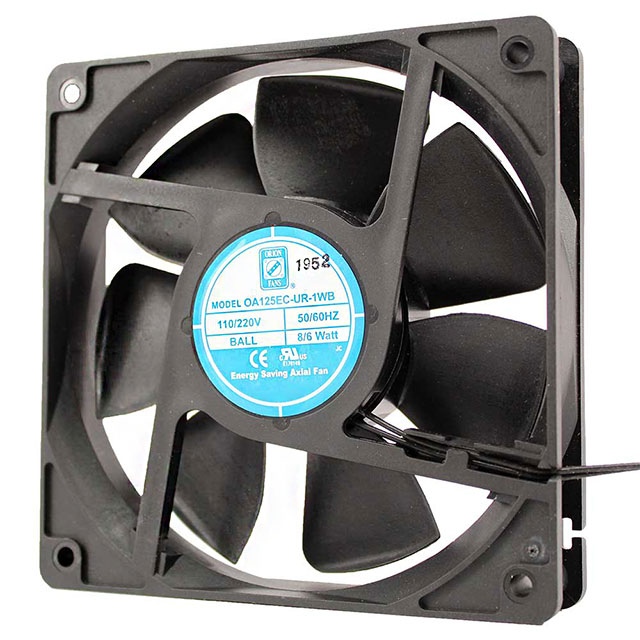

OA125EC-UR-1WB
ActiveOrion Fans
EC FAN 120X25MM 85-265VAC 80CFM
Deep-Dive with AI
Search across all available documentation for this part.
OA125EC-UR-1WB
ActiveOrion Fans
EC FAN 120X25MM 85-265VAC 80CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OA125EC-UR-1WB |
|---|---|
| Air Flow | 80 CFM |
| Air Flow | 2.24 mł/min |
| Approval Agency | TUV, CE, cURus, UR |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Dual Voltage, Electronic Commutation (EC) |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 49 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.8 W |
| RPM | 3000 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 0.21 in H2O |
| Static Pressure | 52.3 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated [Max] | 220 VAC |
| Voltage - Rated [Min] | 110 VAC |
| Voltage Range [Max] | 265 VAC |
| Voltage Range [Min] | 85 VAC |
| Weight | 180.08 g |
| Weight | 0.397 lb |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 21.61 | |
| 10 | $ 19.26 | |||
| 25 | $ 18.46 | |||
| 50 | $ 18.56 | |||
| 100 | $ 18.46 | |||
Description
General part information
OA125EC Series
Fan Tubeaxial 110/220VAC Square - 120mm L x 120mm H Ball 80.0 CFM (2.24m³/min) 2 Wire Leads
