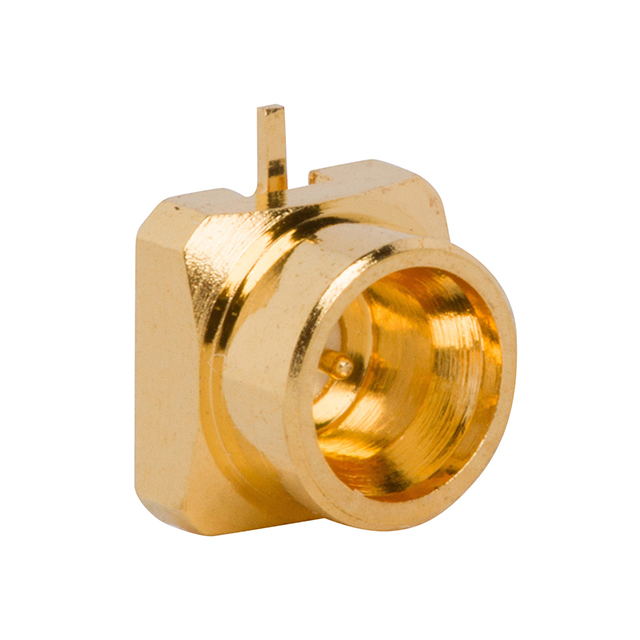

925-144J-51P
ActiveAmphenol RF
CONN SMPM PLUG STR 50OHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
925-144J-51P
ActiveAmphenol RF
CONN SMPM PLUG STR 50OHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 925-144J-51P |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMPM |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Features | Smooth Bore |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.12 | |
| 10 | $ 10.91 | |||
| 25 | $ 10.27 | |||
| 50 | $ 10.01 | |||
| 100 | $ 9.75 | |||
| 300 | $ 8.69 | |||
| 500 | $ 8.17 | |||
| 1000 | $ 7.22 | |||
Description
General part information
925-14 Series
SMPM Connector Jack, Male Pin 50 Ohms Surface Mount Solder
Documents
Technical documentation and resources
No documents available
