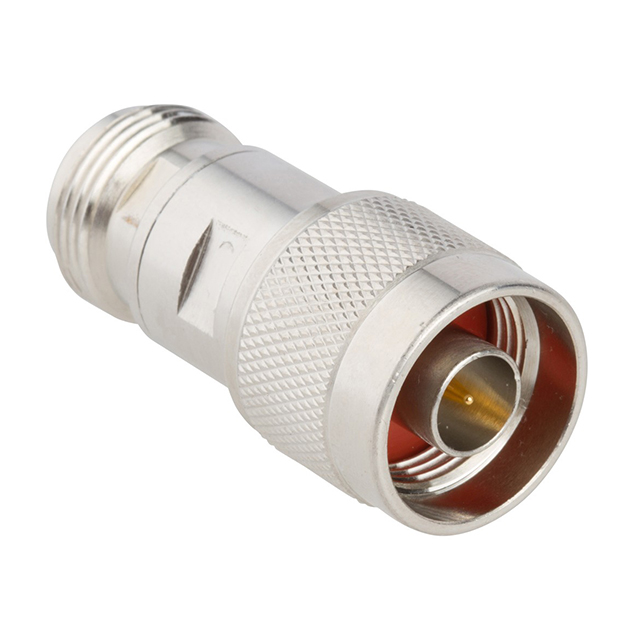

ATS-2M2F-20DB2W
ObsoleteAmphenol RF
RF ATTENUATOR 20DB 50OHM NTYPE
Deep-Dive with AI
Search across all available documentation for this part.
ATS-2M2F-20DB2W
ObsoleteAmphenol RF
RF ATTENUATOR 20DB 50OHM NTYPE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS-2M2F-20DB2W |
|---|---|
| Attenuation Value | 20 dB |
| Frequency Range [Max] | 6 GHz |
| Frequency Range [Min] | 0 Hz |
| Impedance | 50 Ohms |
| Package / Case | N-Type In-Line Module |
| Power (Watts) | 2 W |
ATS-2M2F Series
| Part | Frequency Range [Min] | Frequency Range [Max] | Impedance | Attenuation Value [custom] | Package / Case | Power (Watts) | Attenuation Value |
|---|---|---|---|---|---|---|---|
Amphenol RF | 0 Hz | 6 GHz | 50 Ohms | 6 dB | N-Type In-Line Module | 2 W | |
Amphenol RF | 0 Hz | 6 GHz | 50 Ohms | 15 dB | N-Type In-Line Module | 5 W | |
Amphenol RF | 0 Hz | 6 GHz | 50 Ohms | N-Type In-Line Module | 2 W | 20 dB | |
Amphenol RF | 0 Hz | 6 GHz | 50 Ohms | 30 dB | N-Type In-Line Module | 2 W | |
Amphenol RF | 0 Hz | 6 GHz | 50 Ohms | N-Type In-Line Module | 5 W | 20 dB | |
Amphenol RF | 0 Hz | 6 GHz | 50 Ohms | 6 dB | N-Type In-Line Module | 5 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ATS-2M2F Series
RF Attenuators 20dB 0 Hz ~ 6 GHz 50 Ohms 2W N-Type In-Line Module
Documents
Technical documentation and resources
No documents available
