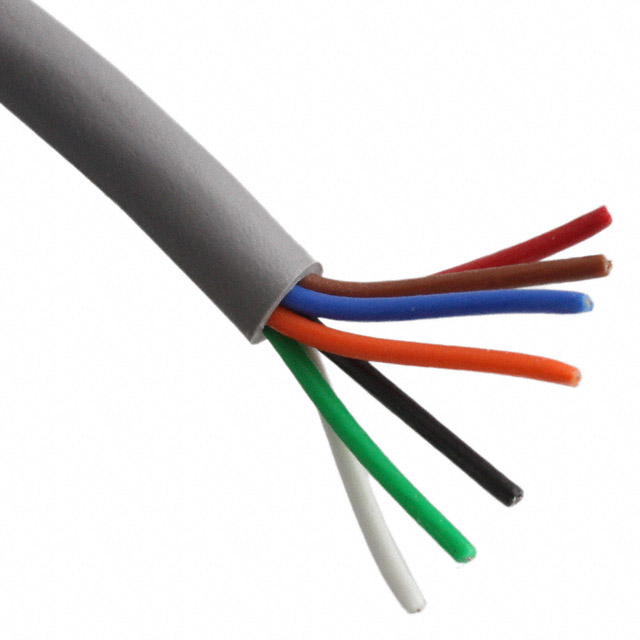

1177C SL001

Active

ALPHA WIRE

CABLE 7COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 7COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1177C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.46 mm
Jacket (Insulation) Diameter [diameter]	0.215 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Jacket Color	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Material	Wire Gauge	Usage	Number of Conductors	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 1177C SL001	Slate	150 V	7	30 AWG	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Multi-Conductor	Copper Tinned	22 AWG	Communication Control	7	1000 ft	304.8 m	5.46 mm	0.215 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
