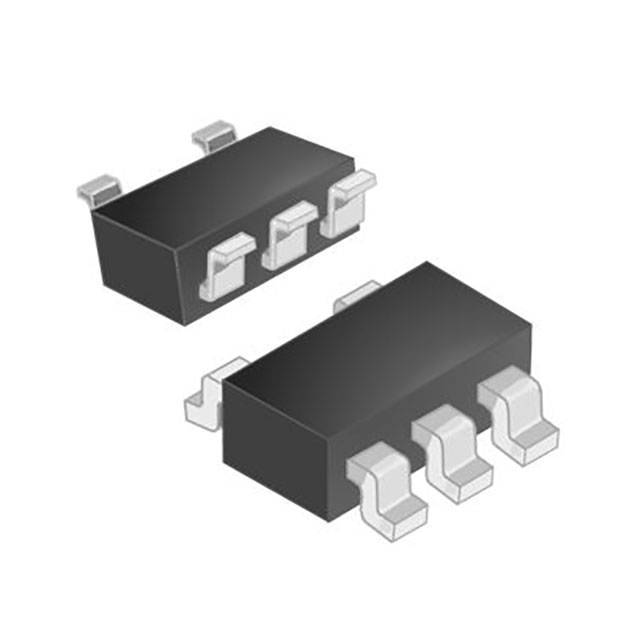

GLF1100-T1G7
ActiveGLF Integrated Power
LOADSWITCH WITH OUTPUT DISCHARGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GLF1100-T1G7
ActiveGLF Integrated Power
LOADSWITCH WITH OUTPUT DISCHARGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLF1100-T1G7 |
|---|---|
| Current - Output (Max) [Max] | 2 A |
| Features | Slew Rate Controlled, Load Discharge |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Package / Case | SC-74A, SOT-753 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 82 mOhm |
| Supplier Device Package | SOT-23-5 |
| Switch Type | General Purpose |
| Voltage - Load [Max] | 5.5 V |
| Voltage - Load [Min] | 1.1 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 0.38 | |
| 20 | $ 0.34 | |||
| 30 | $ 0.32 | |||
| 100 | $ 0.24 | |||
| 250 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| 1000 | $ 0.15 | |||
| 3000 | $ 0.14 | |||
| 6000 | $ 0.13 | |||
Description
General part information
GLF1100 Series
Power Switch/Driver 1:1 P-Channel 2A SOT-23-5
