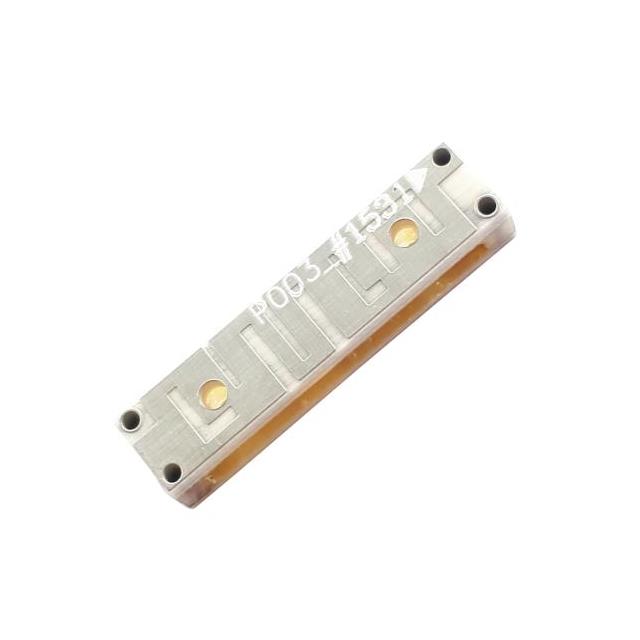

ECHO12/X/X/S/S/3 - ECHO12/X/X/S/S/3

ECHO12/X/X/S/S/3

Active
Siretta Ltd

RF ANT 2.4GHZ CHIP SOLDER SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetWhat Parameters are Important for Cellular Antenna Evaluation?
ECHO12/X/X/S/S/3 - ECHO12/X/X/S/S/3

ECHO12/X/X/S/S/3

Active
Siretta Ltd

RF ANT 2.4GHZ CHIP SOLDER SMD

Deep-Dive with AI

DocumentsDatasheetWhat Parameters are Important for Cellular Antenna Evaluation?

Technical Specifications

Parameters and characteristics for this part

SpecificationECHO12/X/X/S/S/3
Antenna TypeChip
Frequency Range [Max]2.5 GHz
Frequency Range [Min]2.4 GHz
Gain5.2 dBi
Height (Max) [Max]0.173 in
Height (Max) [Max]4.4 mm
Mounting TypeSurface Mount
Number of Bands1
TerminationSolder
VSWR3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 100$ 9.48

Description

General part information

ECHO12 Series

RF ANTENNA Chip Solder Surface Mount
