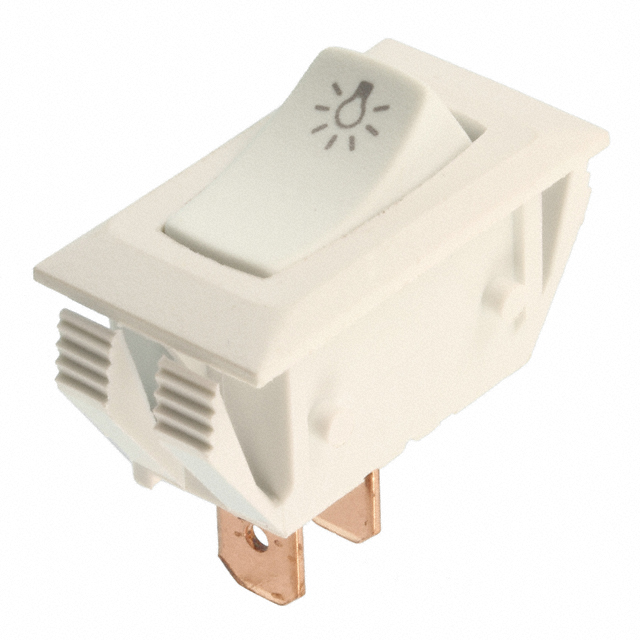

GRSH-2011-2013

Active

CW Industries

SWITCH ROCKER SPST 8A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER SPST 8A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Mechanical Life	Mounting Type	Current Rating (Amps)	Actuator Marking	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Circuit	Electrical Life	Color - Actuator/Cap	Termination Style	Voltage Rating - AC	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Features
CW Industries GRSH-2011-2600	100000 Cycles	Panel Mount Snap-In	16 A	No Marking	On-Off	13.97 mm	28.58 mm	SPST	25000 Steps	Black	Quick Connect - 0.250" (6.3mm)	125 V	Concave (Curved)	-20 C	105 ░C
CW Industries GRSH-2011-2017		Panel Mount Snap-In	8 A	Light Bulb	On-Off	13.97 mm	28.58 mm	SPST		Beige	Quick Connect - 0.250" (6.3mm)	125 V	Concave (Curved)			Polarized
CW Industries GRSH-2011-2008		Panel Mount Snap-In	8 A	Light Bulb	On-Off	13.97 mm	28.58 mm	SPST		Black	Quick Connect - 0.250" (6.3mm)	125 V	Concave (Curved)			Polarized
CW Industries GRSH-2011-2013		Panel Mount Snap-In	8 A	Light Bulb	On-Off	13.97 mm	28.58 mm	SPST		White	Quick Connect - 0.250" (6.3mm)	125 V	Concave (Curved)			Polarized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.80

General part information

Rocker Switch SPST 8A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources
