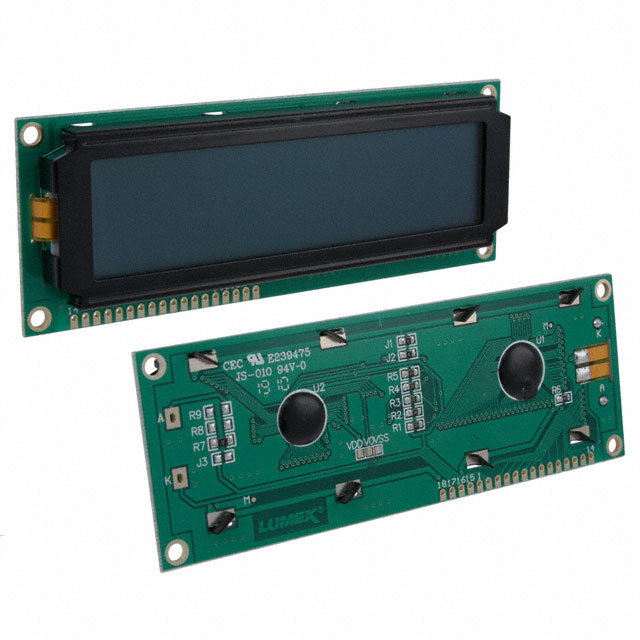

LCR-U01602DSF/DWH

Active

Lumex Opto/Components Inc.

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 32DIG 16X2 TRANSFLCT WHT

Technical Specifications

Parameters and characteristics for this part

Part	Display Mode	Interface	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Backlight	Display Format [y]	Display Format [x]	Display Type	Character Format	Operating Temperature [Max]	Operating Temperature [Min]	Background Color	Character Size [z]	Character Size [y]	Viewing Area [x]	Viewing Area [y]	Dot Size [y]	Dot Size [x]	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Characters	Character Format [y]	Character Format [x]
Lumex Opto/Components Inc. LCR-U01602DSF/DWH	Transflective	Parallel	122 mm	44 mm	10.6 mm	LED - White	2	16	STN - Super-Twisted Nematic	5 x 7 Dots w/Cursor	85 °C	-40 °C	Green	9.66 mm	4.84 mm	99 mm	24 mm	1.1 mm	0.92 mm	4.7 V	5.3 V	32
Lumex Opto/Components Inc. LCR-U01602DSF/AWH	Transflective	Parallel	80 mm	36 mm	9.9 mm	LED - White	2	16	STN - Super-Twisted Nematic		85 °C	-40 °C	Green	4.35 mm	2.8 mm	64 mm	14 mm			4.7 V	5.3 V	32	8 Dots	5 Dots

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Transflective 5 x 7 Dots w/Cursor STN - Super-Twisted Nematic LED - White Parallel 122.00mm x 44.00mm x 10.60mm
