173-E25-212-141

Obsolete

MH Connectors

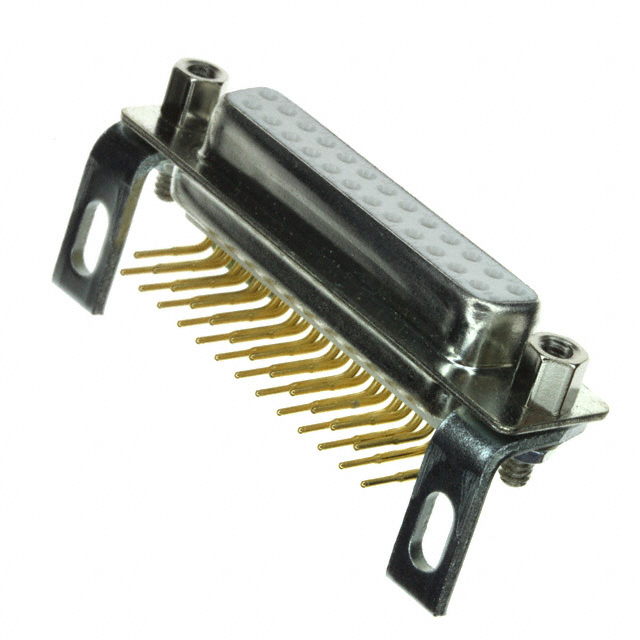

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

173-E25-212-141

Obsolete

MH Connectors

CONN D-SUB RCPT 25POS R/A SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	173-E25-212-141

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

173-E25 Series

Part	Flange Feature	Backset Spacing	Backset Spacing	Connector Style	Number of Rows	Contact Material	Connector Type	Shell Material, Finish	Contact Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Contact Finish Thickness	Current Rating (Amps)	Material Flammability Rating	Mounting Type	Features	Contact Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating
MH Connectors 173-E25-111R141	Female Screwlock (4-40) Mating Side	0.283 in	7.2 mm	D-Sub	2	Brass	Male Pins Plug	Steel Yellow Chromate Plated	Signal	Polyamide (PA6T) Nylon 6T	B DB	3	Solder	Flash	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Mounting Brackets	Gold	White
MH Connectors 173-E25-113R141	Female Screwlock (4-40) Mating Side	0.283 in	7.2 mm	D-Sub	2	Brass	Male Pins Plug	Nickel Plated Steel	Signal	Polyamide (PA6T) Nylon 6T	B DB	3	Solder	Flash	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Grounding Indents Mounting Brackets	Gold	White
MH Connectors 173-E25-111R001	Housing/Shell (Unthreaded)	0.283 in	7.2 mm	D-Sub	2	Brass	Male Pins Plug	Steel Yellow Chromate Plated	Signal	Polyamide (PA6T) Nylon 6T	B DB	3	Solder	Flash	5 A	UL94 V-0	Panel Mount Right Angle Through Hole		Gold	White
MH Connectors 173-E25-211R141	Female Screwlock (4-40) Mating Side	0.283 in	7.2 mm	D-Sub	2		Receptacle Female Sockets	Steel Yellow Chromate Plated	Signal	Polyamide (PA6T) Nylon 6T	B DB	3	Solder	Flash	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Mounting Brackets	Gold	White
MH Connectors 173-E25-213R461	Housing/Shell (4-40)	0.283 in	7.2 mm	D-Sub	2	Copper	Receptacle Female Sockets	Nickel Plated Steel	Signal	Polyamide (PA6T) Nylon 6T	B DB	3	Solder	Flash	5 A	UL94 V-0	Through Hole Right Angle	Board Lock Mounting Brackets	Gold	White	-55 °C	125 °C
MH Connectors 173-E25-213R141	Female Screwlock (4-40) Mating Side	0.283 in	7.2 mm	D-Sub	2	Copper	Receptacle Female Sockets	Nickel Plated Steel	Signal	Polyamide (PA6T) Nylon 6T	B DB	3	Solder	Flash	5 A	UL94 V-0	Through Hole Right Angle	Mounting Brackets	Gold	White	-55 °C	125 °C
MH Connectors 173-E25-212-141	Female Screwlock (4-40) Mating Side	0.283 in	7.2 mm	D-Sub	2		Receptacle Female Sockets		Signal	Polybutylene Terephthalate (PBT)	B DB	3	Solder	Flash	5 A	UL94 V-0	Panel Mount Right Angle Through Hole	Mounting Brackets	Gold	White
MH Connectors 173-E25-213R241	Mating Side Standard Screws (4-40)	0.283 in	7.2 mm	D-Sub	2	Copper	Receptacle Female Sockets	Nickel Plated Steel	Signal	Polyamide (PA6T) Nylon 6T	B DB	3	Solder	Flash	5 A	UL94 V-0	Through Hole Right Angle	Mounting Brackets	Gold	White	-55 °C	125 °C	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1	$ 5.49

Description

General part information

173-E25 Series

25 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
