C3AAG-2606M

Active

CW Industries

IDC CABLE - CSC26G/AE26M/CSC26G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC26G/AE26M/CSC26G

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Rows	Pitch - Connector	Pitch - Connector	Number of Positions	Connector Type	Length [x]	Length [x]	Color	Length	Length	Length
CW Industries C3AAG-2018G	Gold	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám	IDC	2	0.1 in	2.54 mm	20	Socket to Socket	457.2 mm	1.5 ft
CW Industries C3AAG-2636M	Gold	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám	IDC	2	0.1 in	2.54 mm	26	Socket to Socket	914.4 mm	3 ft	Multiple Ribbon
CW Industries C3AAG-2006G	Gold	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám	IDC	2	0.1 in	2.54 mm	20	Socket to Socket				152.4 mm	6 "	0.5 '
CW Industries C3AAG-2618G	Gold	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám	IDC	2	0.1 in	2.54 mm	26	Socket to Socket	457.2 mm	1.5 ft
CW Industries C3AAG-2606M	Gold	0.05 "	1.27 mm	Unshielded	10 Áin	0.25 Ám	IDC	2	0.1 in	2.54 mm	26	Socket to Socket			Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

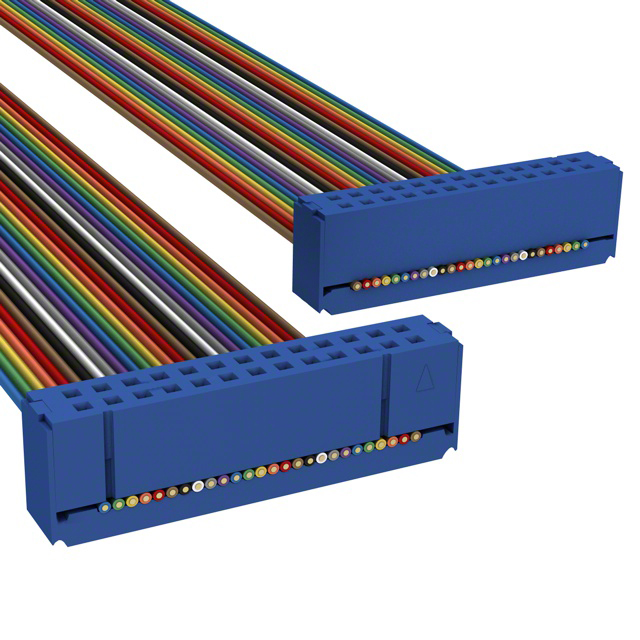

26 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
