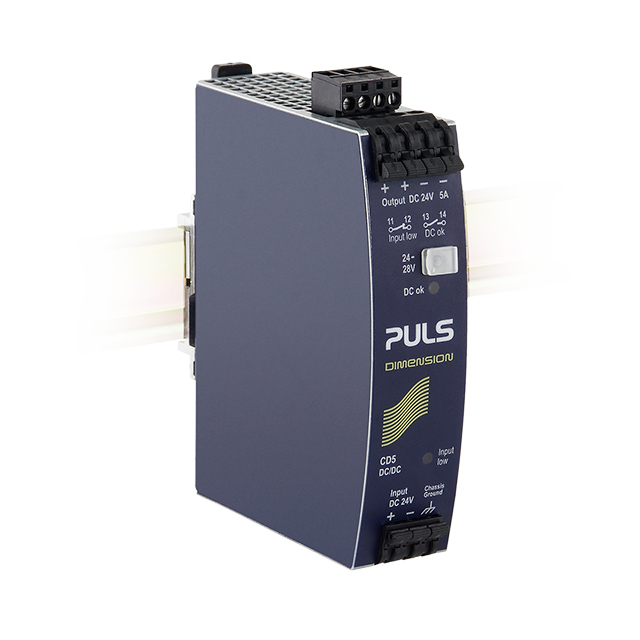

CD5.241-S1

Active

PULS, LP

DC/DC DIN RAIL SUPPLY 24V 120W

Search across all available documentation for this part.

Active

PULS, LP

DC/DC DIN RAIL SUPPLY 24V 120W

Technical Specifications

Parameters and characteristics for this part

Specification	CD5.241-S1

Applications	ITE (Commercial)
Approval Agency	UL, CSA, EAC, ATEX, ABS, DNV GL, IECEx, IEC
Current - Output (Max) [Max]	5 A
DC Voltage - Input (Max) [Max]	32.4 V
DC Voltage - Input (Min) [Min]	18 V
Efficiency	90.2 %
Input Type	DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Size / Dimension [x]	102 mm
Size / Dimension [x]	4.02 in
Size / Dimension [y]	32 mm
Size / Dimension [y]	1.26 in
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	508, Class I Div 2, 60950-1
Voltage - Output 1	24 V

Part	Voltage - Output 1	Input Type	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	Applications	Standard Number	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)
PULS, LP CD5.241	24 V	DC	32.4 V	5 A	18 V	ITE (Commercial)	508 60950-1 Class I Div 2	ABS ATEX CSA DNV GL EAC IEC IECEx UL	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	1	90.3 %	-25 °C	70 °C
PULS, LP CD5.243	24 V	DC	16.2 V	4 A	10.8 V	ITE (Commercial)	508 60950-1 Class I Div 2	ABS ATEX CSA DNV GL EAC IEC IECEx UL	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	1	87.7 %	-25 °C	70 °C	84 W
PULS, LP CD5.241-L1	24 V	DC	32.4 V	3.8 A	14.4 V	ITE (Commercial)	508 60950-1 Class 2 Class I Div 2	ABS ATEX CSA DNV GL EAC IEC IECEx NEC UL	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	1	90.5 %	-25 °C	70 °C	92 W
PULS, LP CD5.241-S1	24 V	DC	32.4 V	5 A	18 V	ITE (Commercial)	508 60950-1 Class I Div 2	ABS ATEX CSA DNV GL EAC IEC IECEx UL	124 mm	32 mm	4.88 "	102 mm	1.26 in	4.02 in	1	90.2 %	-25 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 409.50

General part information

DC/DC DIN RAIL SUPPLY 24V 120W
