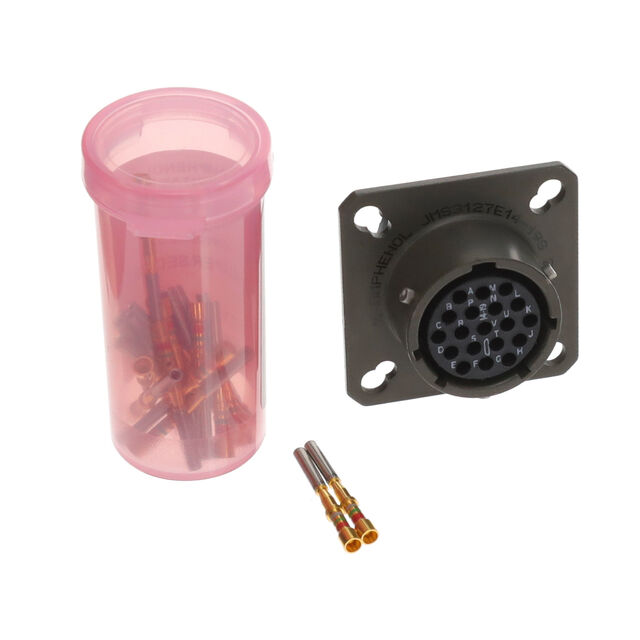

MS3127E14-19S

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3127E14-19S

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Connector Type	Ingress Protection	Applications	Mounting Feature	Primary Material	Shell Material	Fastening Type	Contact Material	Shell Size - Insert	Termination	Shielding	Contact Finish - Mating	Insert Material	Orientation	Qualification	Grade	Number of Positions	Color	Current Rating (Amps)	Voltage Rating	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Amphenol Industrial Operations MS3127E14-5P(LC)
Amphenol Industrial Operations MS3127E14-12P(LC)
Amphenol Industrial Operations MS3127E14-12S	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Environment Resistant	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Flange	Metal	Aluminum	Bayonet Lock	Copper Alloy	14-12	Crimp	Unshielded	Gold	Neoprene	N	MIL-DTL-26482 Series I	Military	12	Olive Drab
Amphenol Industrial Operations MS3127E14-19S	-55 °C	125 °C	Olive Drab Chromate over Cadmium	Receptacle Female Sockets	Environment Resistant	Aerospace Industrial Instrumentation Mass Transit Military	Flange	Metal	Aluminum	Bayonet Lock	Copper Alloy		Crimp	Unshielded	Gold	Neoprene	N	MIL-DTL-26482 Series I	Military	19	Olive Drab	7.5 A	600 VAC	19	14
Amphenol Industrial Operations MS3127E14-19S(LC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Receptacle, Female Sockets Crimp
