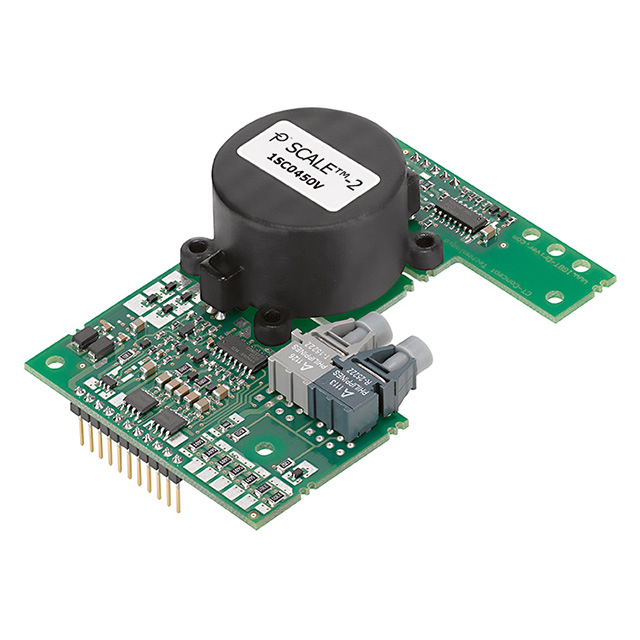

1SC0450V2B0-65

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Search across all available documentation for this part.

Active

Power Integrations

IC GATE DRVR HI/LOW SIDE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	1SC0450V2B0-65

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	50 A
Current - Peak Output (Source, Sink) [custom]	50 A
Driven Configuration	High-Side, Low-Side
Gate Type	IGBT
High Side Voltage - Max (Bootstrap) [Max]	6500 V
Mounting Type	Surface Mount
Number of Drivers	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	25 ns
Rise / Fall Time (Typ) [custom]	30 ns
Supplier Device Package	Module
Voltage - Supply [Max]	15.5 V
Voltage - Supply [Min]	14.5 V

Part	Number of Drivers	Supplier Device Package	High Side Voltage - Max (Bootstrap) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Gate Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Driven Configuration	Package / Case
Power Integrations 1SC0450E2B0-65	1	Module	6500 V	25 ns	30 ns	IGBT	14.5 V	15.5 V	Surface Mount	Single	85 °C	-40 °C	50 A	50 A	High-Side Low-Side	Module
Power Integrations 1SC0450V2A0-65	1	Module	6500 V	25 ns	30 ns	IGBT	14.5 V	15.5 V	Surface Mount	Single	85 °C	-40 °C	50 A	50 A	High-Side Low-Side	Module
Power Integrations 1SC0450V2A0-45	1	Module	4500 V	25 ns	30 ns	IGBT	14.5 V	15.5 V	Surface Mount	Single	85 °C	-40 °C	50 A	50 A	High-Side Low-Side	Module
Power Integrations 1SC0450E2A0-45	1	Module	4500 V	25 ns	30 ns	IGBT	14.5 V	15.5 V	Surface Mount	Single	85 °C	-40 °C	50 A	50 A	High-Side Low-Side	Module
Power Integrations 1SC0450V2B0-65	1	Module	6500 V	25 ns	30 ns	IGBT	14.5 V	15.5 V	Surface Mount	Single	85 °C	-40 °C	50 A	50 A	High-Side Low-Side	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

High-Side or Low-Side Gate Driver IC Module
