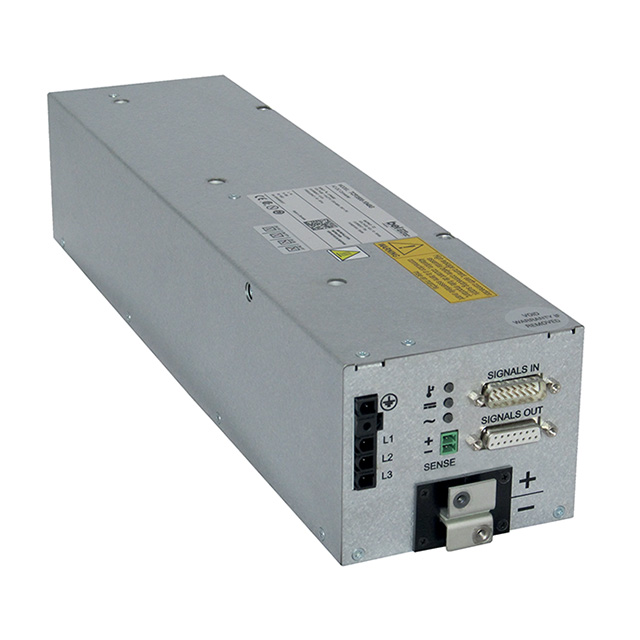

TCP3500-1024G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 3480W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 3480W

Technical Specifications

Parameters and characteristics for this part

Specification	TCP3500-1024G

Applications	ITE (Commercial)
Current - Output 1	145 A
Efficiency	94 %
Features	Baseplate, Adjustable Output, PFC, IP20, Universal Input, Remote On/Off, Load Sharing
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	3480 W
Size / Dimension [x]	400.6 mm
Size / Dimension [x]	15.77 in
Size / Dimension [y]	103 mm
Size / Dimension [y]	4.06 in
Size / Dimension [z]	3.33 "
Size / Dimension [z]	84.6 mm
Type	Front End
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Current - Output 1	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Voltage - Isolation	Power (Watts)	Mounting Type	Applications	Type	Number of Outputs
EOS Power India Private Ltd TCP3500-H048G	70 °C	-25 °C	48 V	73 A	94 %	103 mm	400.6 mm	3.33 "	15.77 in	4.06 in	84.6 mm	Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Remote Sense Universal Input	3000 V	3500 W	Rack Mount	ITE (Commercial)	Front End	1
EOS Power India Private Ltd TCP3500-H060G	70 °C	-25 °C	60 V	65 A	94 %	103 mm	400.6 mm	3.33 "	15.77 in	4.06 in	84.6 mm	Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Remote Sense Universal Input	3000 V	3500 W	Rack Mount	ITE (Commercial)	Front End	1
EOS Power India Private Ltd TCP3500-1048G	85 °C	-40 °C	48 V	73 A	94 %	103 mm	400.6 mm	3.33 "	15.77 in	4.06 in	84.6 mm	Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Remote Sense Universal Input	3000 V	3500 W	Rack Mount	ITE (Commercial)	Front End	1
EOS Power India Private Ltd TCP3500-1024G	70 °C	-25 °C	24 V	145 A	94 %	103 mm	400.6 mm	3.33 "	15.77 in	4.06 in	84.6 mm	Adjustable Output Baseplate IP20 Load Sharing PFC Remote On/Off Universal Input	3000 V	3480 W	Rack Mount	ITE (Commercial)	Front End	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End AC DC Converters 1 Output 24V 180 ~ 528 VAC (3 Phase) Input
