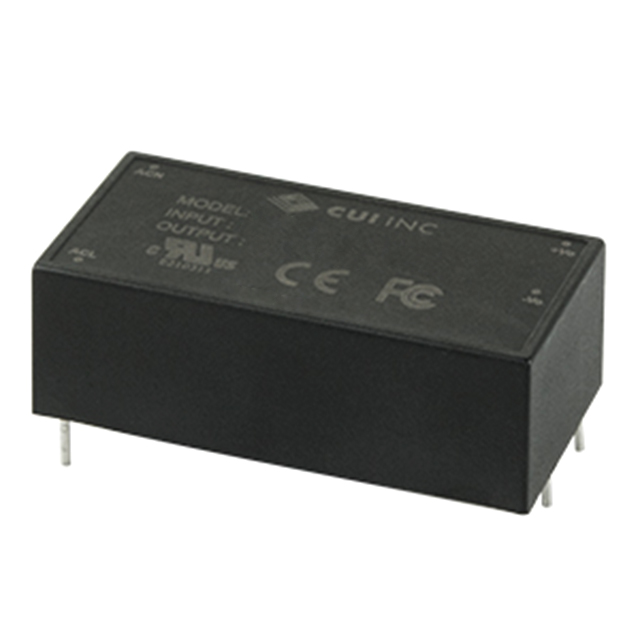

PSK-6B-S9
ActiveCUI Inc.
AC/DC CONVERTER 9V 6W
Deep-Dive with AI
Search across all available documentation for this part.
PSK-6B-S9
ActiveCUI Inc.
AC/DC CONVERTER 9V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSK-6B-S9 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, IEC, FCC, EN, CB Scheme |
| Current - Output (Max) [Max] | 670 mA |
| Efficiency | 79.03 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation | 5 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 16.7 mm |
| Size / Dimension [z] | 0.66 in |
| Standard Number | 61000-3-2, 60950-1, 61000-3-3, 62368-1 |
| Type | Enclosed |
| Voltage - Output 1 | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 180 | $ 9.79 | |
Description
General part information
PSK-6B Series
Enclosed AC DC Converters 1 Output 9V 670mA 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
